Center Power Outlet Socket: Removal

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)  (See REMOVAL )
  2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)  (See REMOVAL )
  3. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)  (See REMOVAL )
  4. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)  (See REMOVAL )
  5. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)  (See REMOVAL )
  6. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)  (See REMOVAL )
  7. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)  (See REMOVAL )
  8. REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY  (See REMOVAL )
  9. REMOVE CONSOLE BOX REGISTER ASSEMBLY  (See REMOVAL )
  10. REMOVE CONSOLE BOX  (See REMOVAL )
  11. REMOVE POWER OUTLET SOCKET ASSEMBLY
    1. Rotate the socket to disengage the notch.
      Fig 1: Rotating Socket To Notch
      G05828359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull out the socket halfway and rotate the socket until its protrusion is aligned with the groove of the cover.
    3. Remove the socket from the cover.

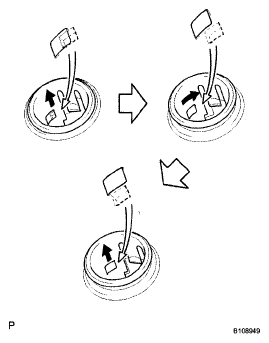

    Fig 2: Rotating Socket Until Protrusion Aligned With Groove Of Cover
    G05300139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
