Home >> Lexus >> 2008 >> IS 350 >> Repair and Diagnosis >> Electrical >> Body Electrical >> Power Outlets >> Cigarette Lighter >> Components

Cigarette Lighter: Components

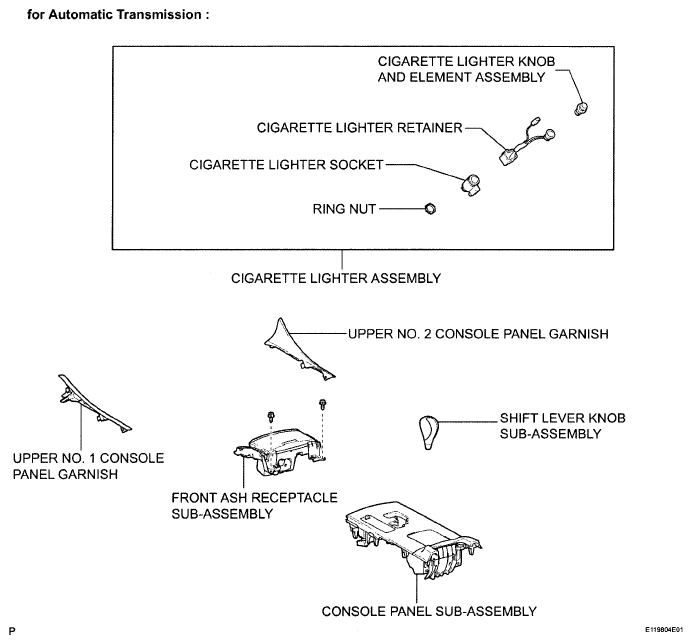

Fig 1: Identifying Cigarette Lighter Components (1 Of 2)
G05828347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

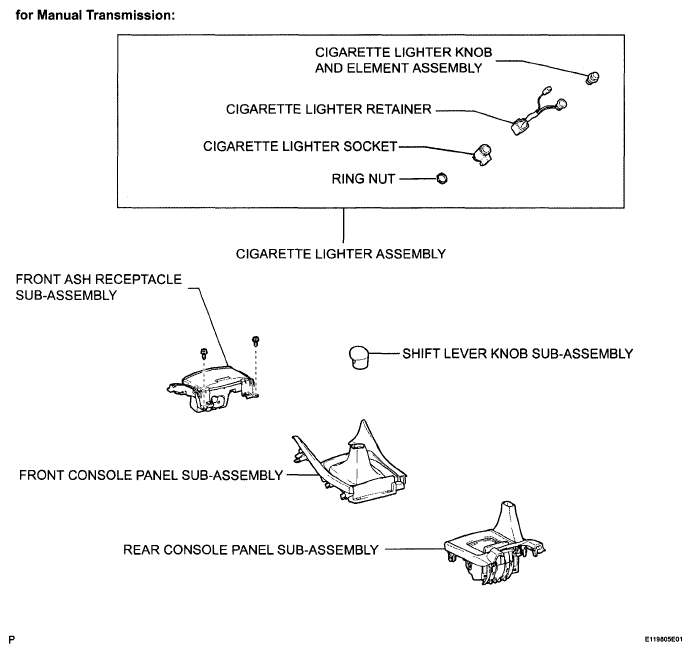

Fig 2: Identifying Cigarette Lighter Components (2 Of 2)
G05828348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
