Power Outlets: Clock: Components

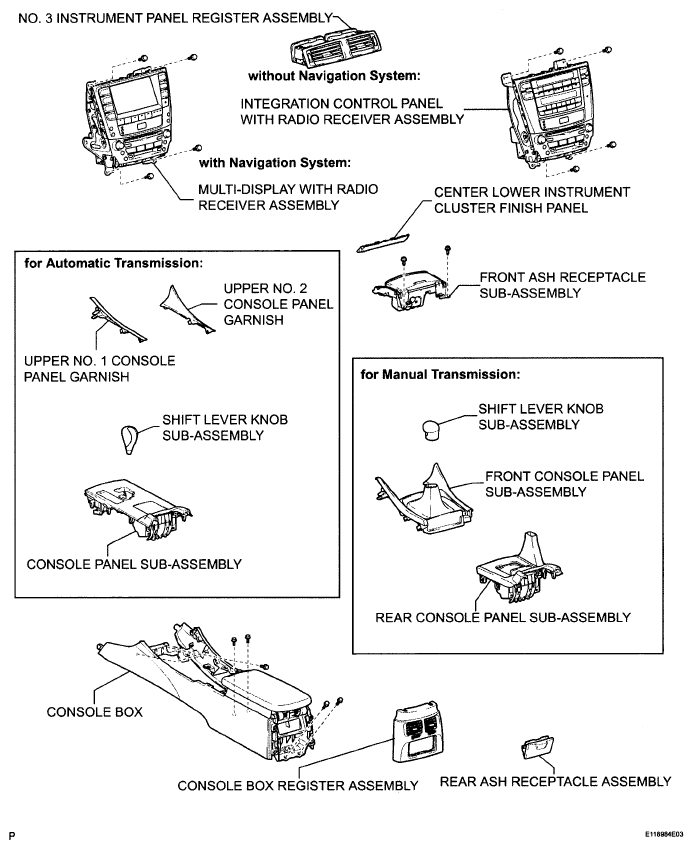

Fig 1: Identifying Clock Components (1 Of 3)
G05828326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

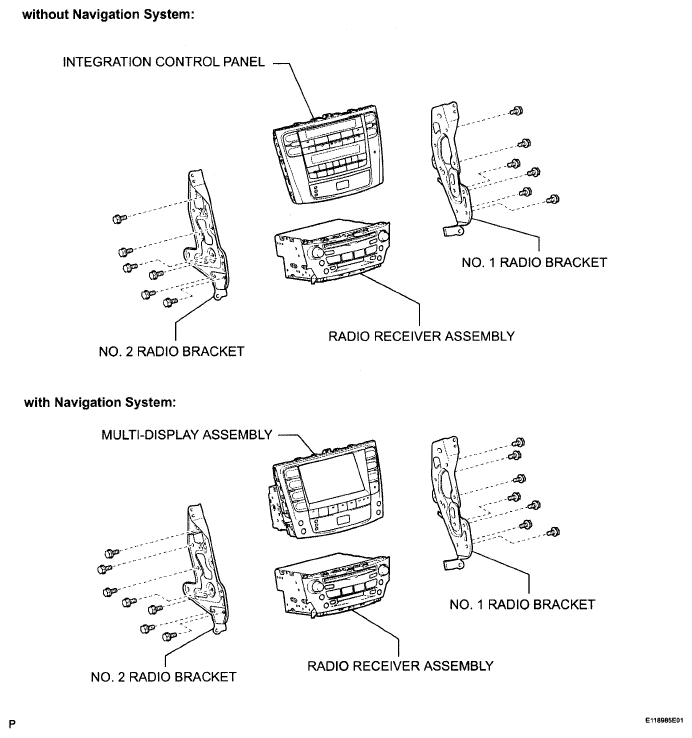

Fig 2: Identifying Clock Components (2 Of 3)
G05828213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

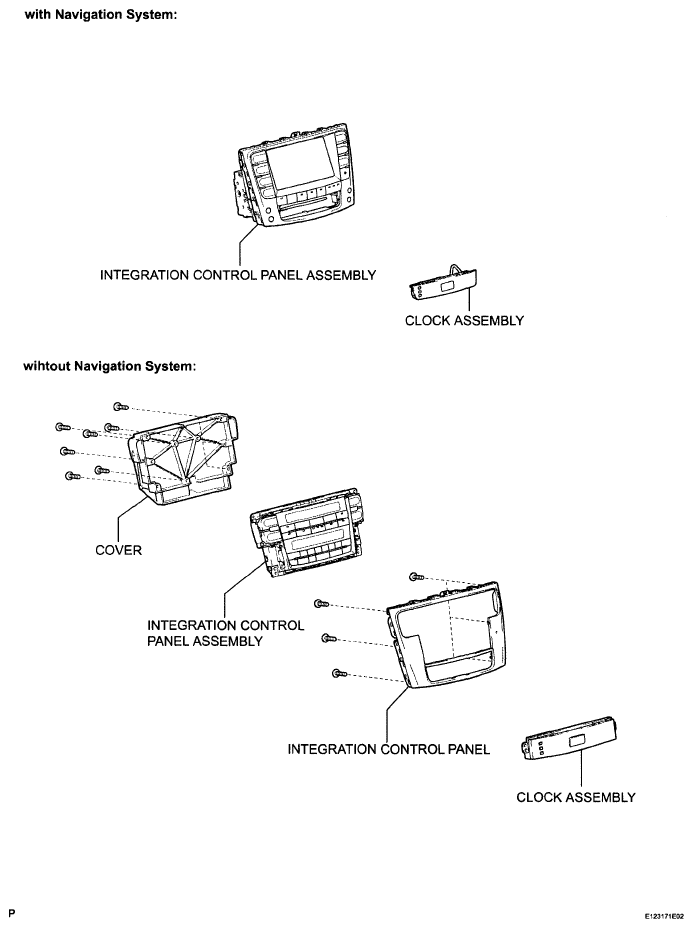

Fig 3: Identifying Clock Components (3 Of 3)
G05828328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
