Rear Console Box: Components

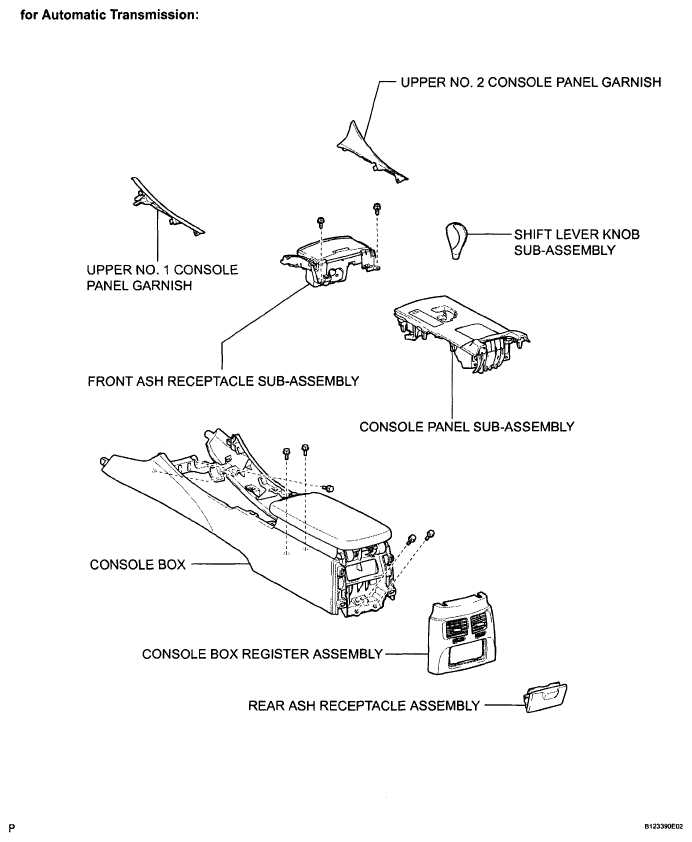

Fig 1: Identifying Rear Console Box Replacement Components (1 Of 3)
G05833039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

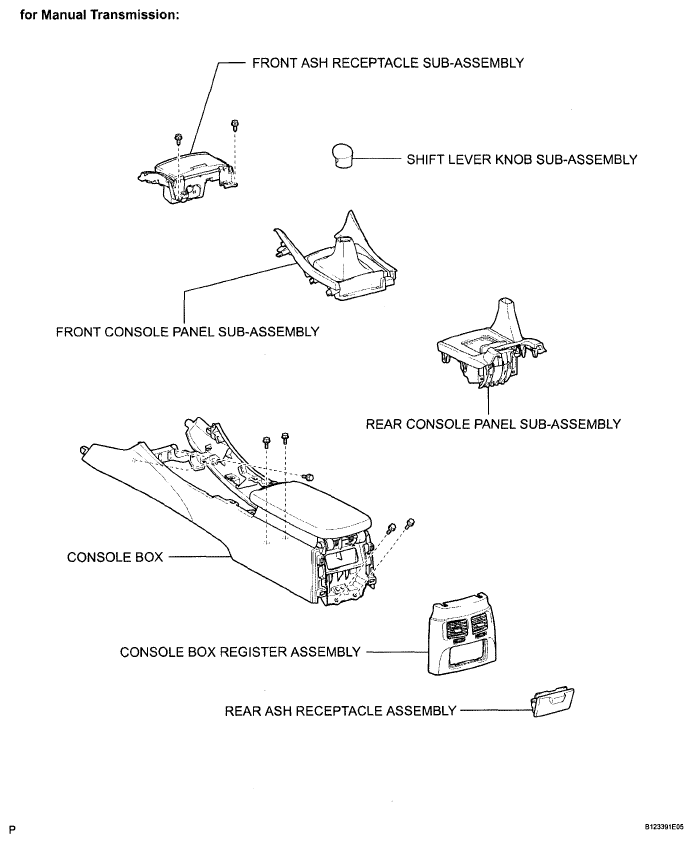

Fig 2: Identifying Rear Console Box Components (2 Of 3)
G05833040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

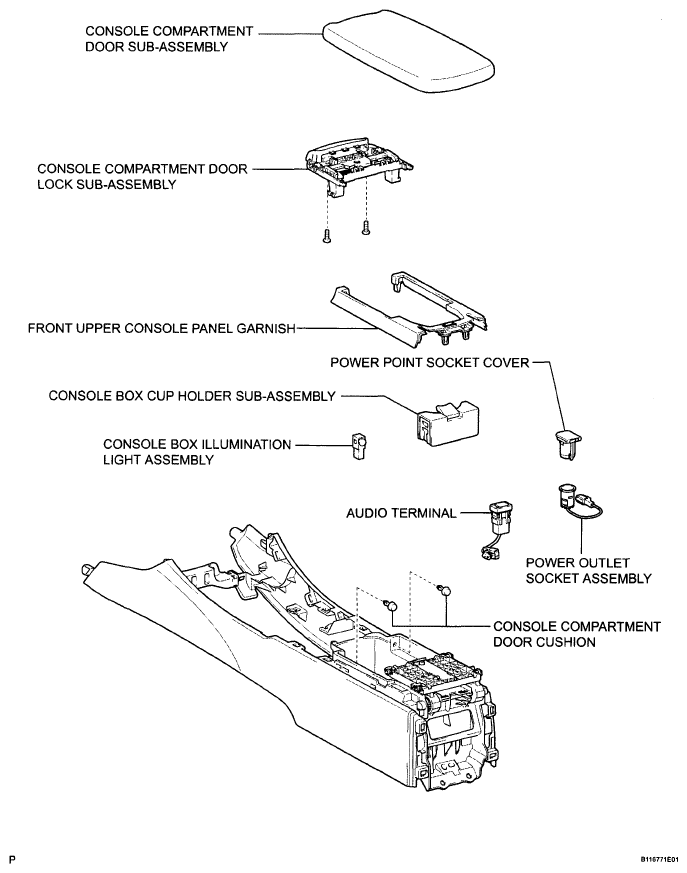

Fig 3: Identifying Rear Console Box Replacement Components (3 Of 3)
G05833041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
