Fuel Pressure Sensor: Components

Fig 1: Identifying Fuel Pressure Sensor Replacement Components (1 Of 3) with Torque Specifications
G05316200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Fuel Pump (For High Pressure) Replacement Components (2 Of 3) with Torque Specifications
G05826311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

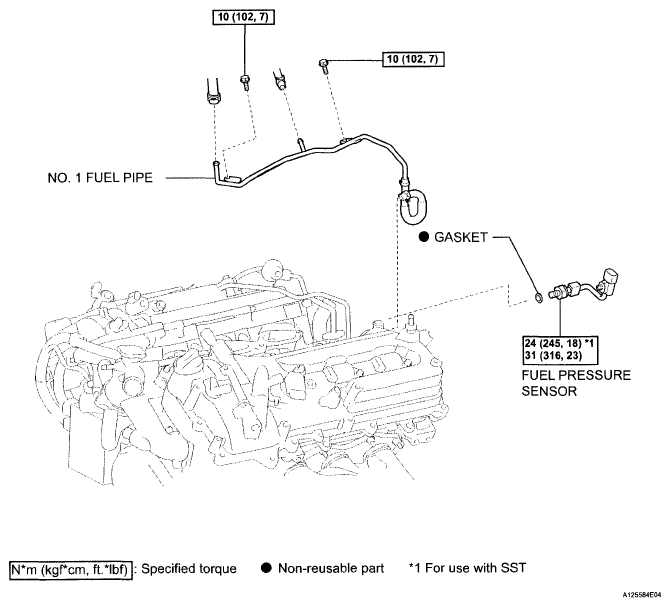

Fig 3: Fuel Pressure Sensor Replacement Components (3 Of 3) with Torque Specifications
G05826367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
