Fuel Pump: Components

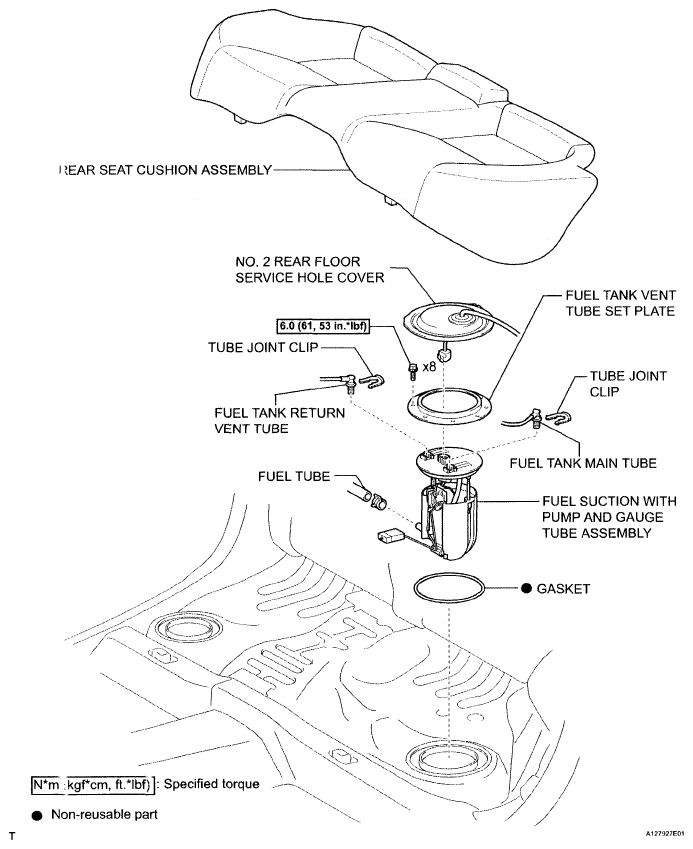

Fig 1: Fuel Pump Replacement Components (1 Of 2) with Torque Specifications
G05826378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

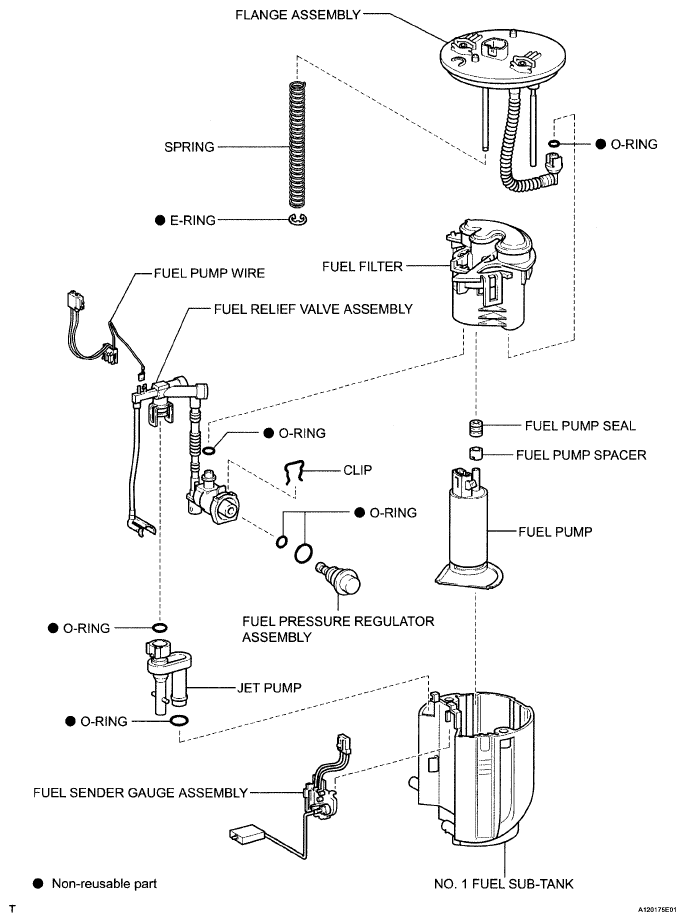

Fig 2: Identifying Fuel Pump Components (2 Of 2)
G05826379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
