Home >> Lexus >> 2008 >> IS 350 >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel (2GR-FSE) >> Injector Driver >> Components

Injector Driver: Components

Fig 1: Identifying Injector Driver Replacement Components (1 Of 2) with Torque Specifications
G05826372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

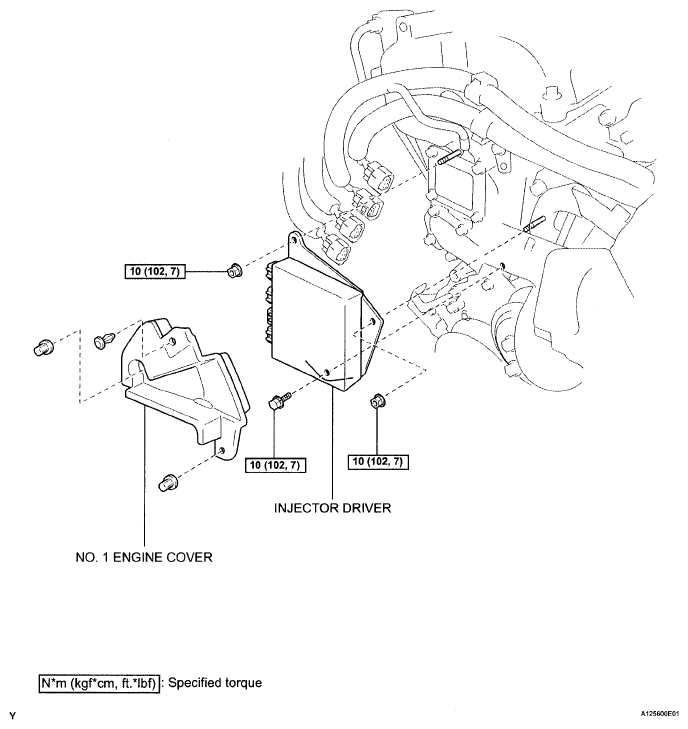

Fig 2: Injector Driver Replacement Components (2 Of 2) with Torque Specifications
G05826373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
