Navigation Ecu: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

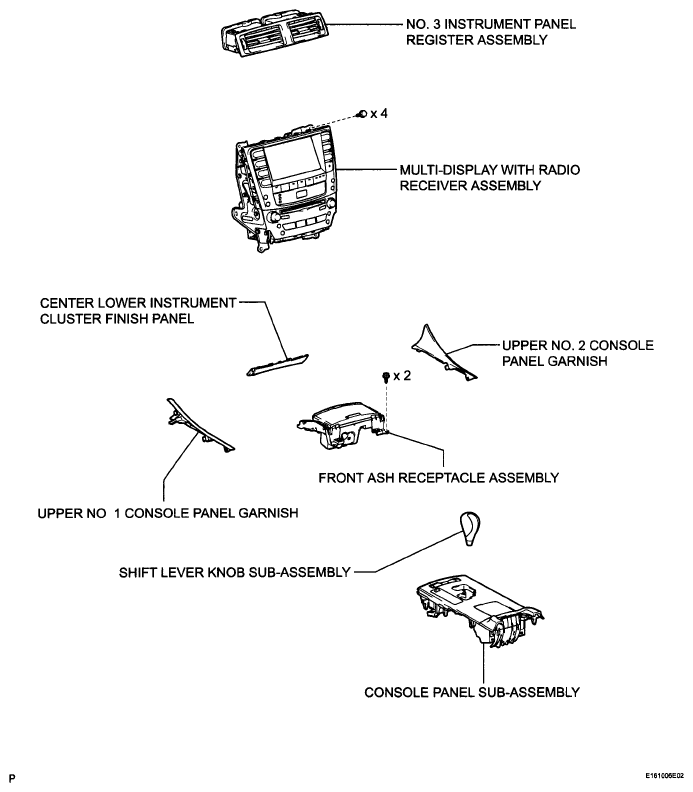

Fig 1: Identifying Navigation ECU Replacement Components (1 Of 2)
G05753761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

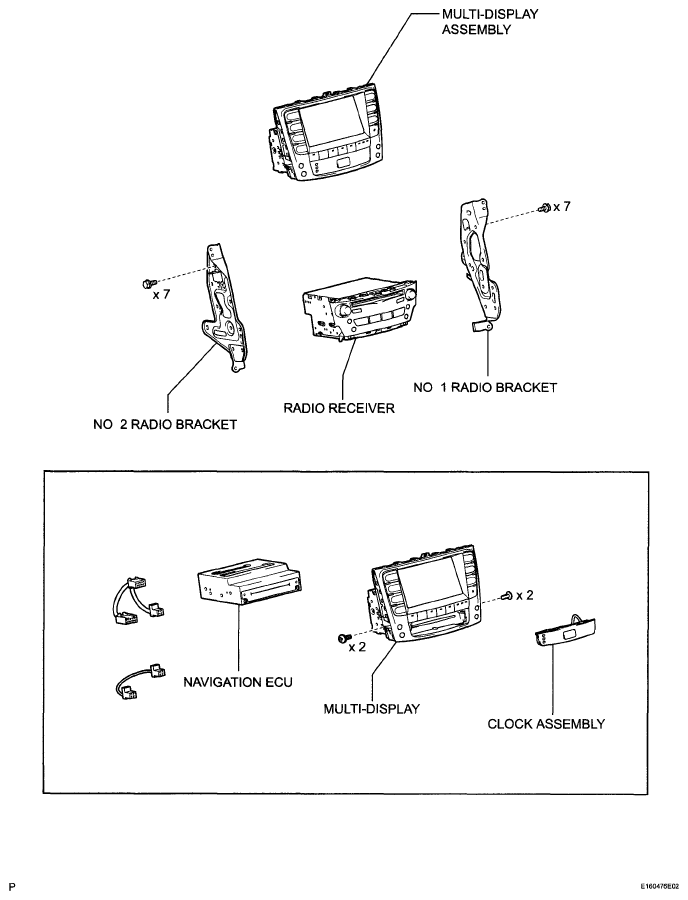

Fig 2: Identifying Navigation ECU Components (2 Of 2)
G05753762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
