Shift Lever Assembly: Components

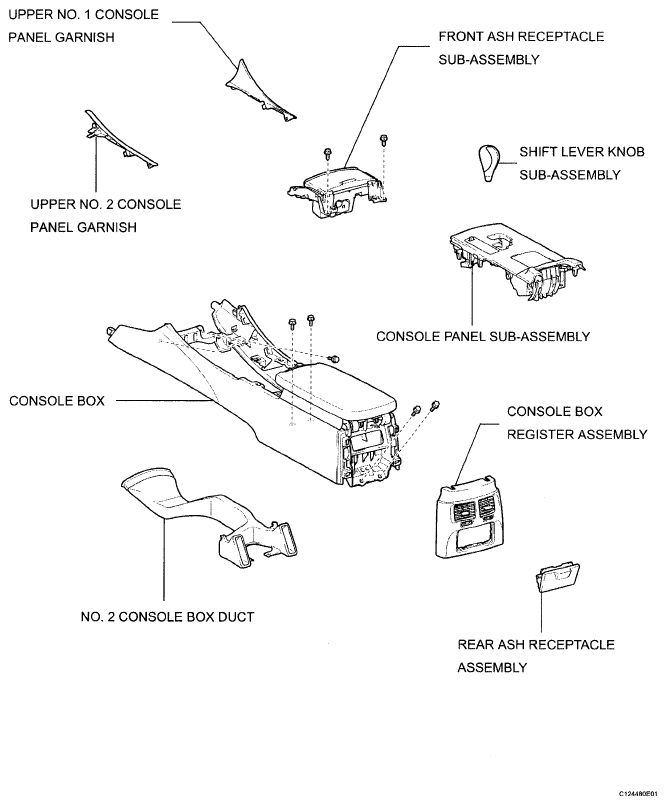

Fig 1: Shift Lever Assembly Replacement Components With Torque Specifications (1 Of 3)
G05824201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

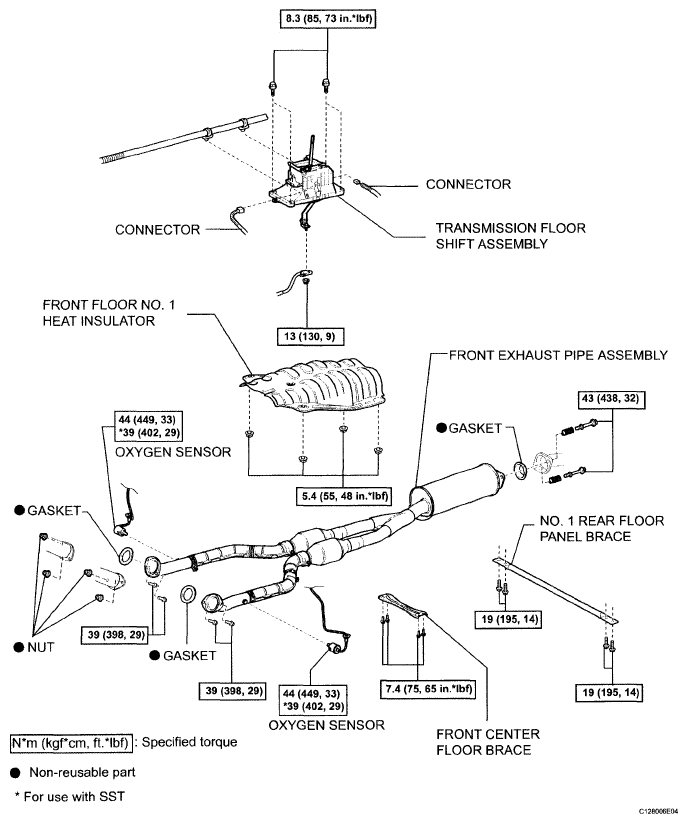

Fig 2: Shift Lever Assembly Replacement Components With Torque Specifications (2 Of 3)
G05824202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

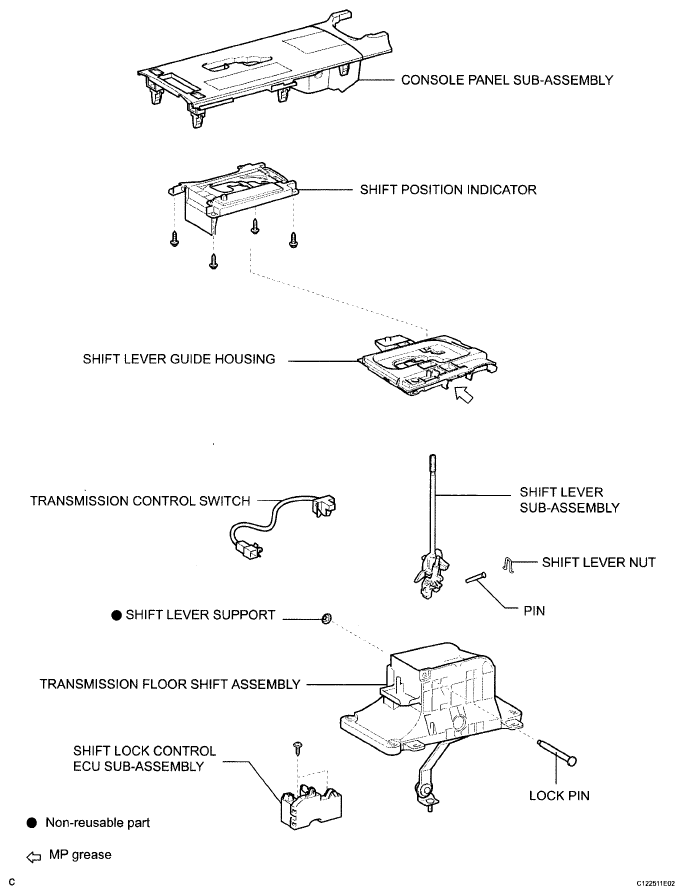

Fig 3: Identifying Shift Lever Assembly Components (3 Of 3)
G05824203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
