Torque Converter And Drive Plate: Components

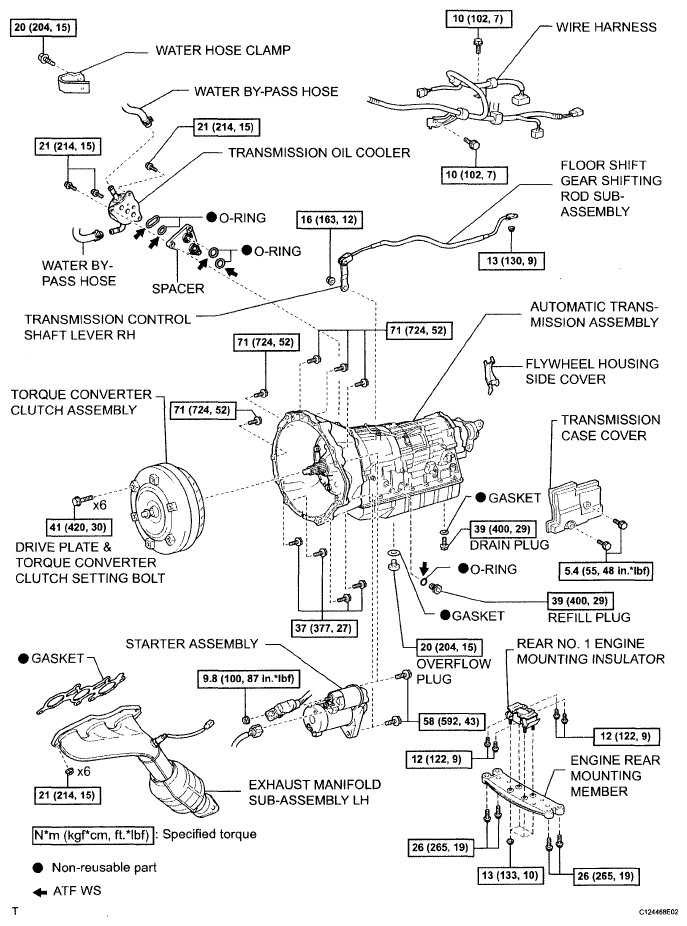

Fig 1: Identifying Torque Converter And Drive Plate Replacement Components With Torque Specification (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Torque Converter And Drive Plate Replacement Components With Torque Specification (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

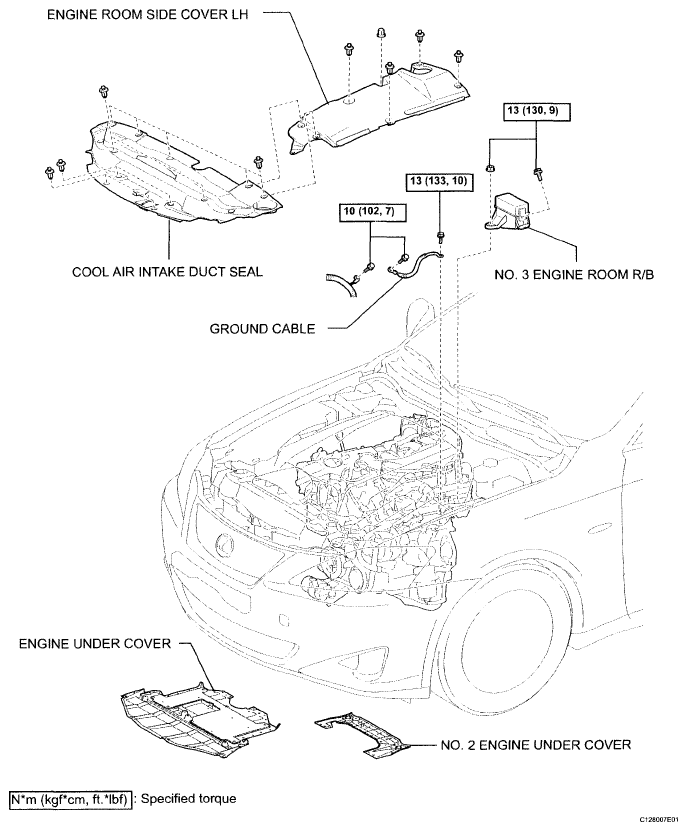

Fig 3: Torque Converter And Drive Plate Replacement Components With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
