Home >> Lexus >> 2008 >> IS F >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat >> Lumbar Switch >> Components

Lumbar Switch: Components

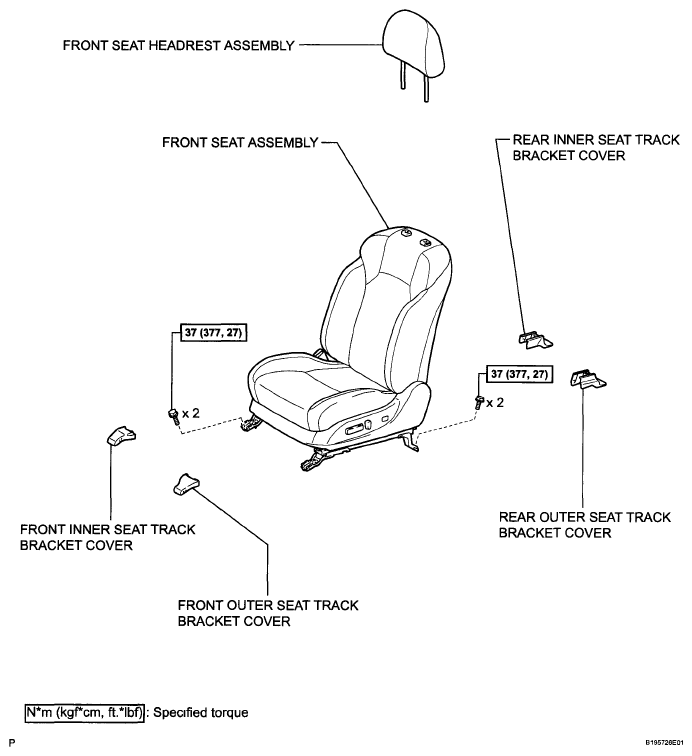

Fig 1: Front Seat Assembly Replacement Components (1 Of 5) With Torque Specifications
G05754899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

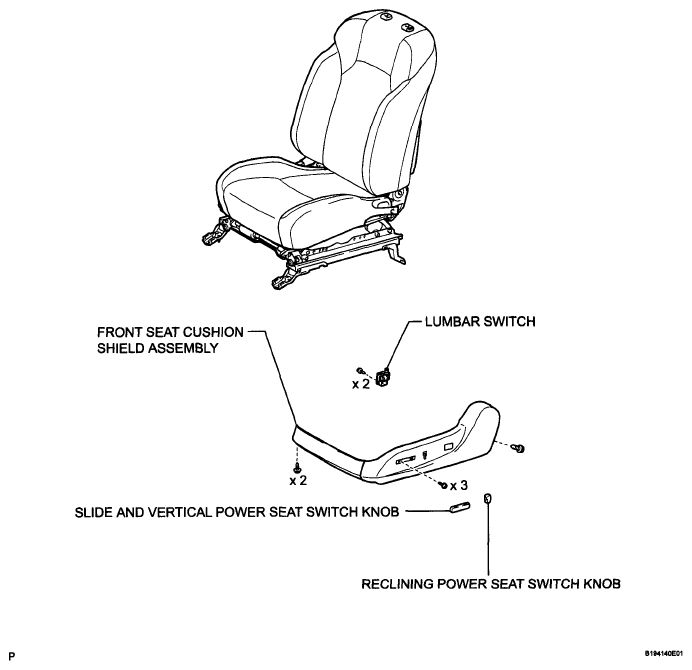

Fig 2: Identifying Lumbar Switch Components (2 Of 2)
G05755060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
