Home >> Lexus >> 2008 >> IS F >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/WINDOWGLASS >> Back Window Glass >> Components

Back Window Glass: Components

Fig 1: Identifying Back Window Glass Replacement Components (1 Of 3) With Torque Specification
G05755824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

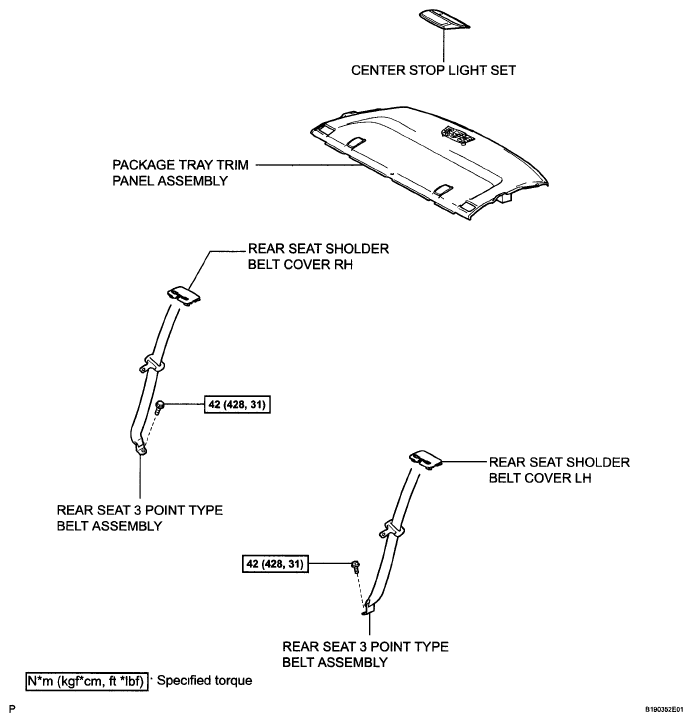

Fig 2: Identifying Back Window Glass Replacement Components (2 Of 3) With Torque Specification
G05755825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

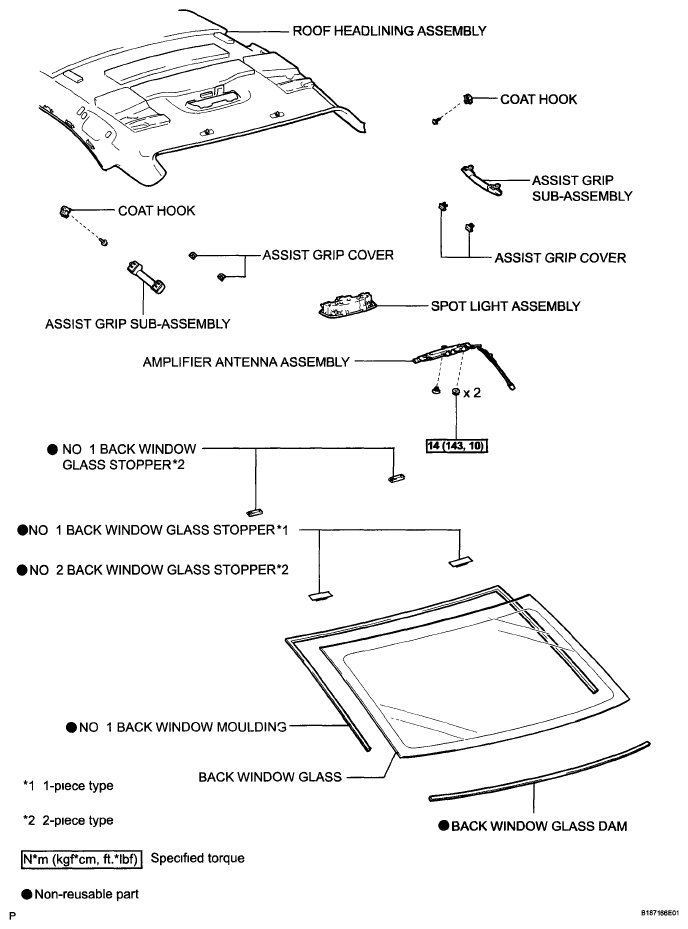

Fig 3: Back Window Glass Replacement Components (3 Of 3) With Torque Specification
G05755826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
