Parts Location

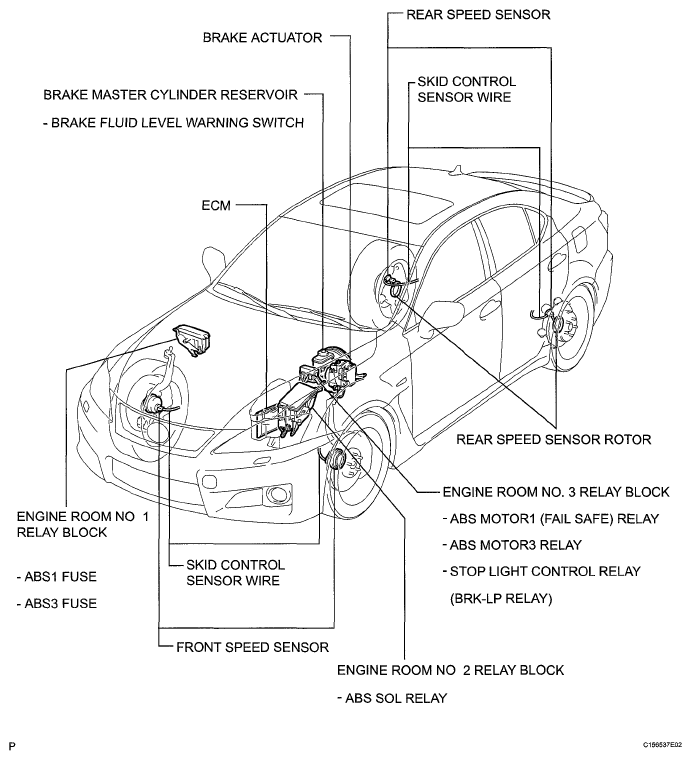

Fig 1: Identifying Brake Control / Dynamic Control Systems Parts Location (1 Of 2)
G05752524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

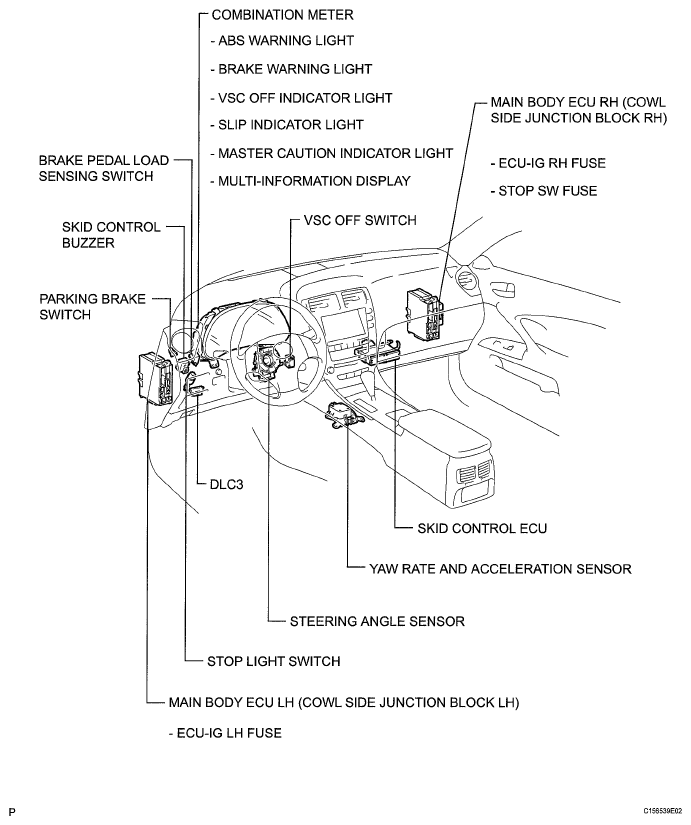

Fig 2: Identifying Brake Control / Dynamic Control Systems Parts Location (2 Of 2)
G05752525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
