Home >> Lexus >> 2008 >> IS F >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Lubrication >> Engine Oil Cooler >> Components

Engine Oil Cooler: Components

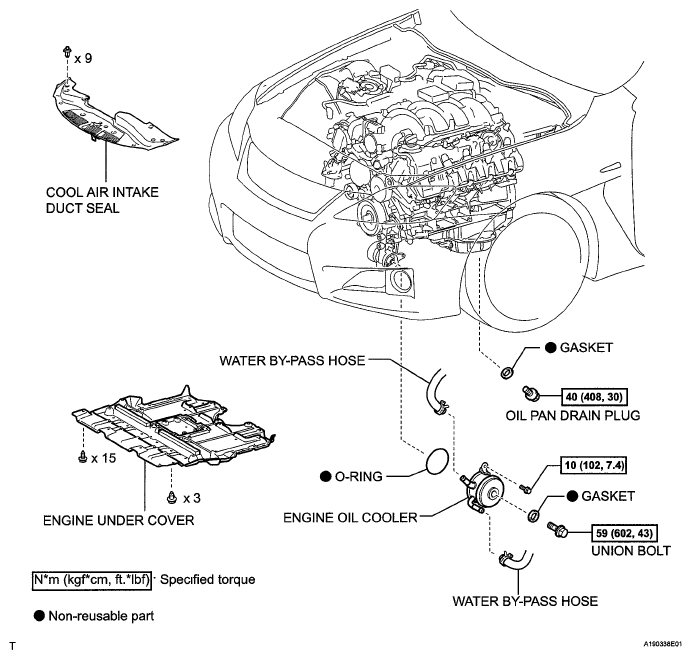

Fig 1: Engine Oil Cooler Replacement Components With Torque Specifications
G05750486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
