Home >> Lexus >> 2008 >> IS F >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Intake System / Exhaust System >> Intake Manifold >> Components

Intake Manifold: Components

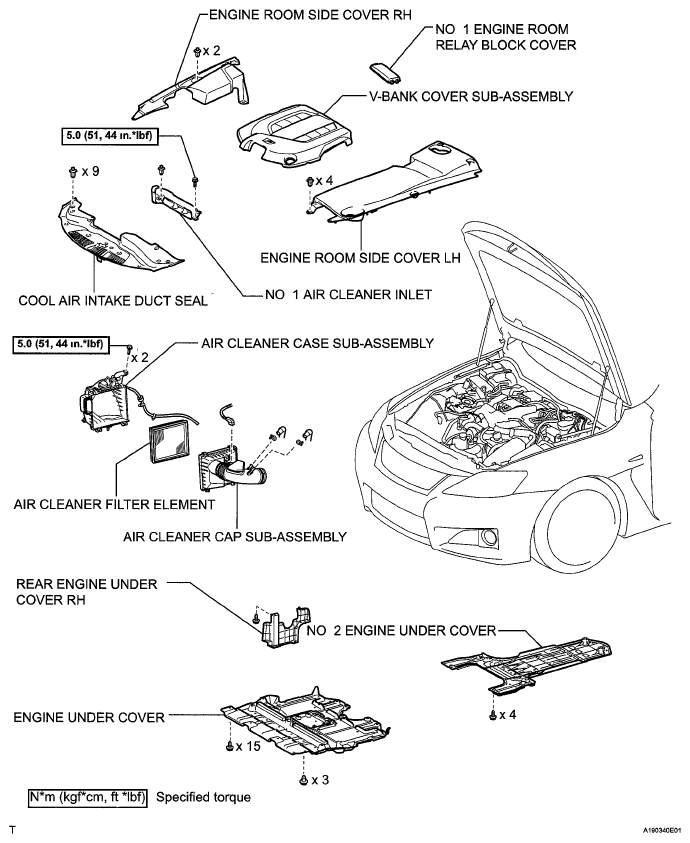

Fig 1: Intake Manifold Replacement Components With Torque Specifications (1 Of 3)
G05750218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

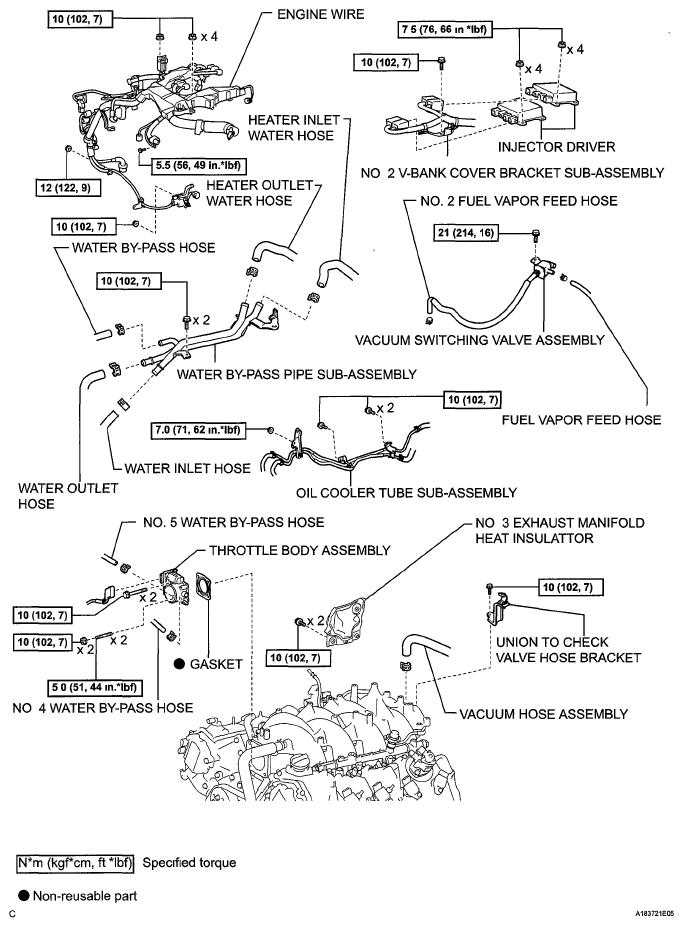

Fig 2: Intake Manifold Replacement Components With Torque Specifications (2 Of 3)
G05750219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

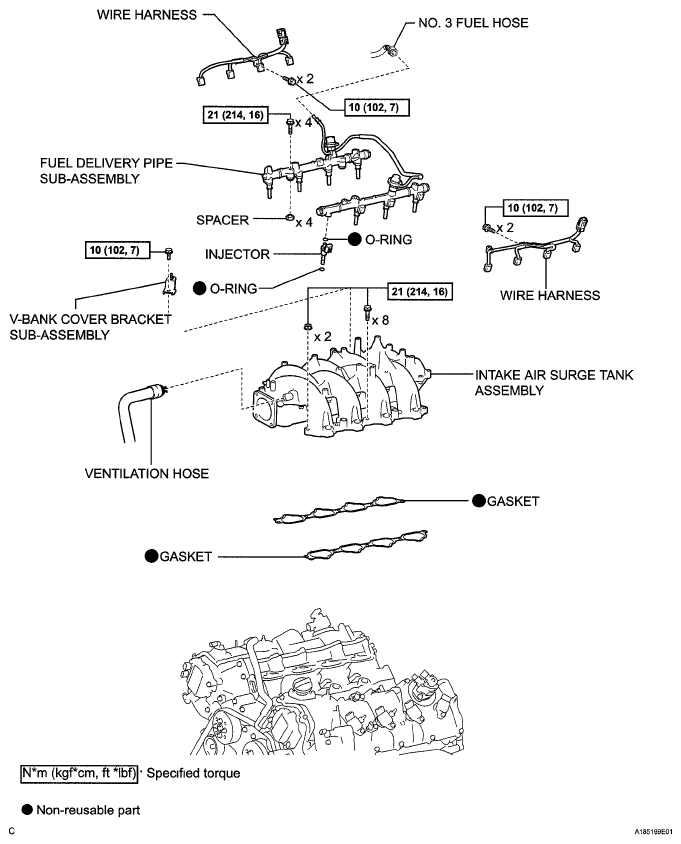

Fig 3: Intake Manifold Replacement Components With Torque Specifications (3 Of 3)
G05750220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
