Home >> Lexus >> 2008 >> IS F >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - System & Component Testing, R & I >> Camshaft Timing Control Motor >> Components

Camshaft Timing Control Motor: Components

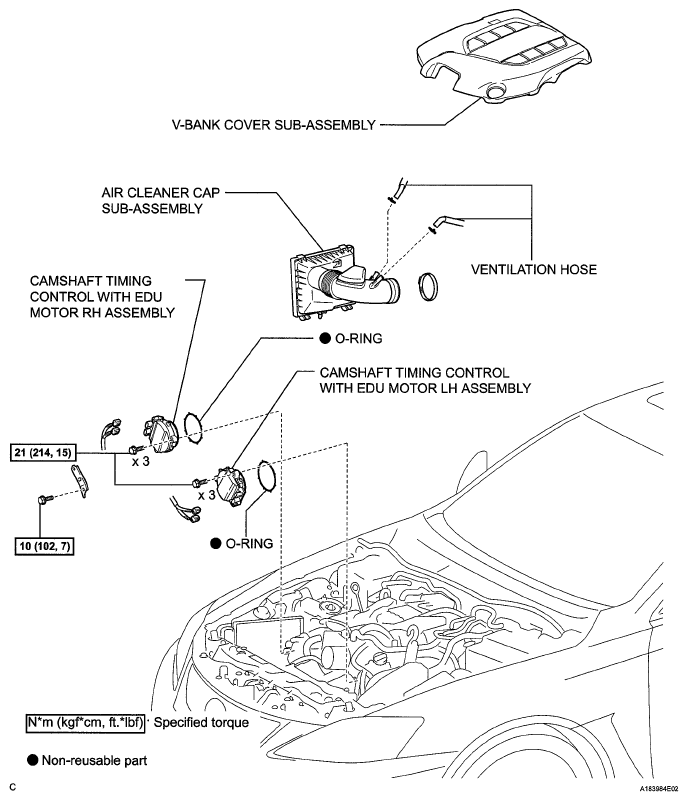

Fig 1: Camshaft Timing Control Motor Replacement Components With Torque Specifications

G05751869

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
