Home >> Lexus >> 2008 >> IS F >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt >> Front Seat Inner Belt Assembly >> Components

Front Seat Inner Belt Assembly: Components

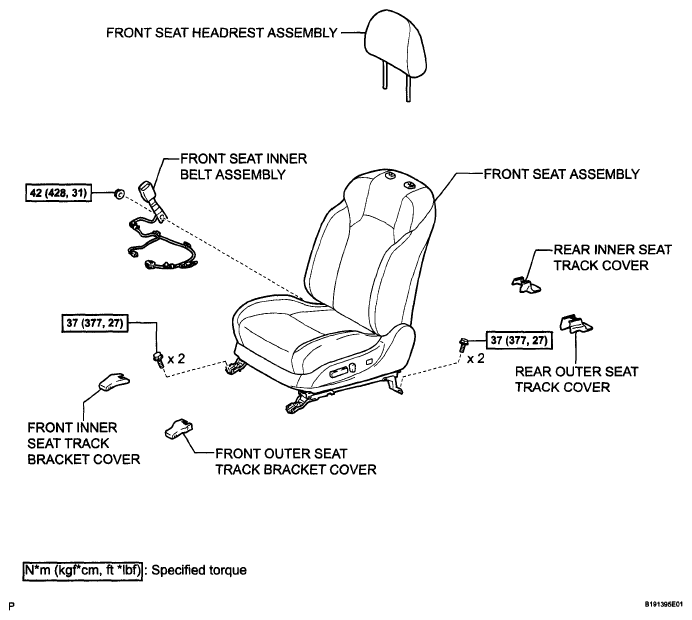

Fig 1: Front Seat Inner Belt Assembly Replacement Components With Torque Specifications

G05755124

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
