Home >> Lexus >> 2008 >> LS 460L >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Power Mirror Control System >> Parts Location

Parts Location

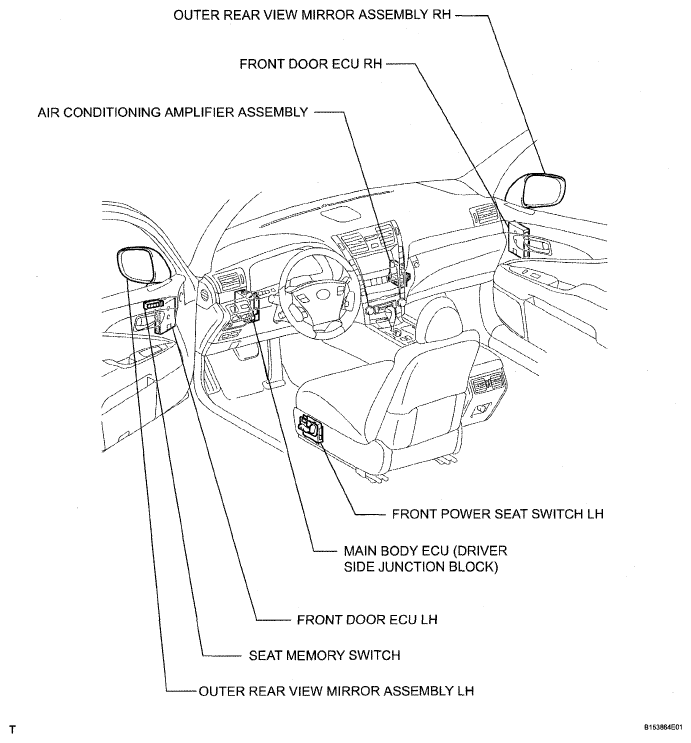

Fig 1: Identifying Power Mirror Control System Parts Location (1 Of 2)
G04952255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

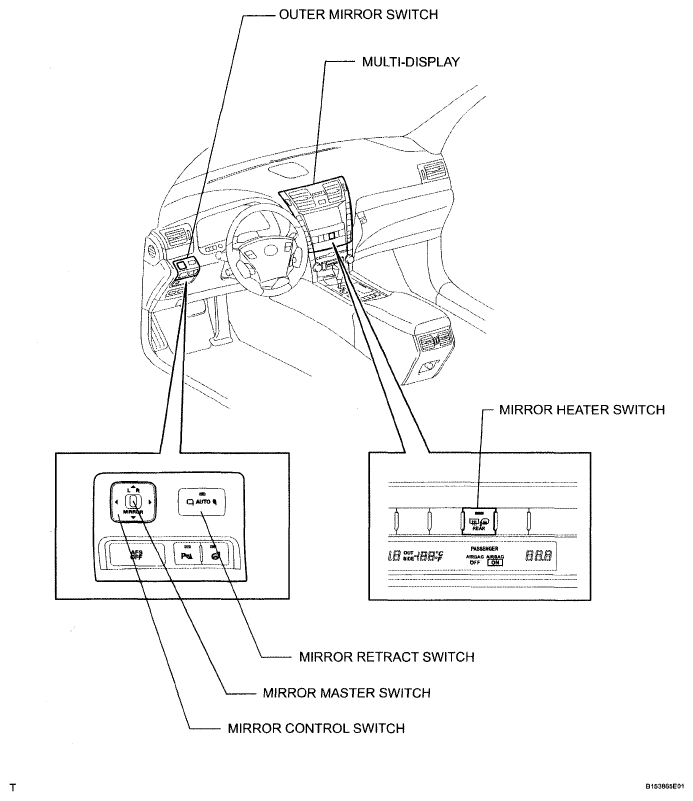

Fig 2: Identifying Power Mirror Control System Parts Location (2 Of 2)
G05849291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
