System Diagram

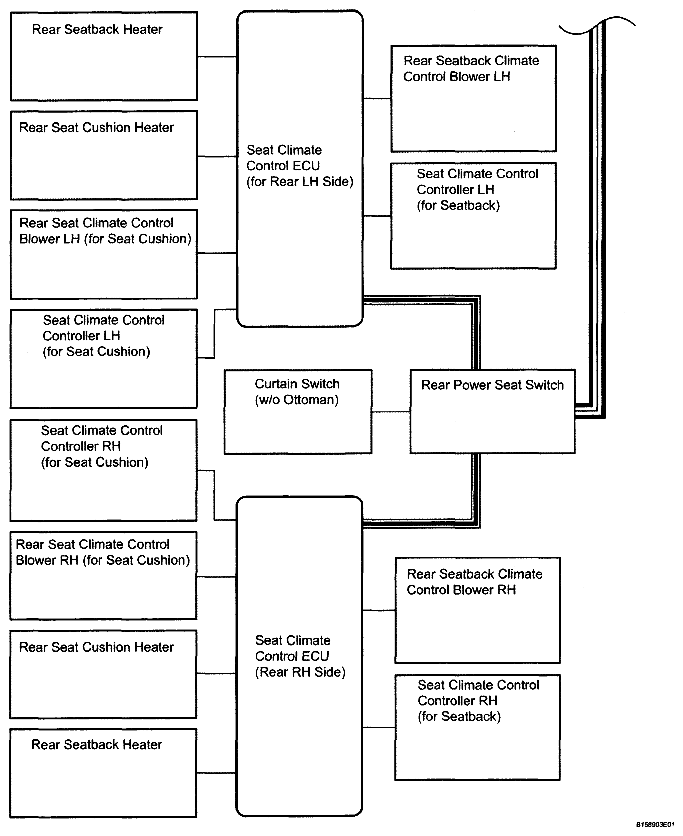

Fig 1: Climate Control Seat System Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Climate Control Seat System Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table

COMMUNICATION CHART

Sender	Receiver	Signal	Line
Climate control ECU	A/C amplifier	A/C signal	LIN, CAN
