Front Power Seat Motor Assembly: Components

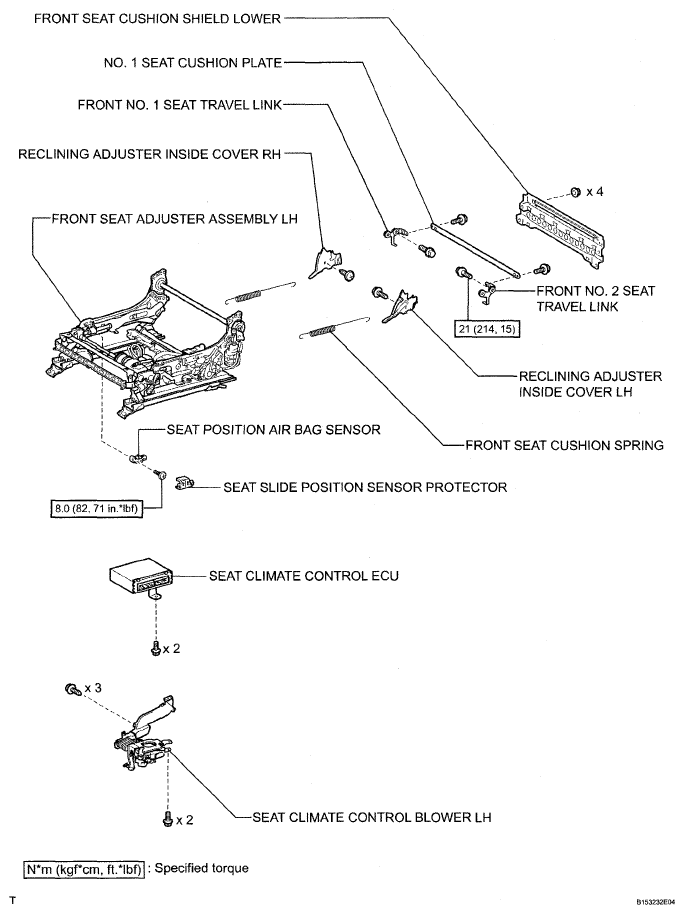

Fig 1: Front Power Seat Motor Assembly Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

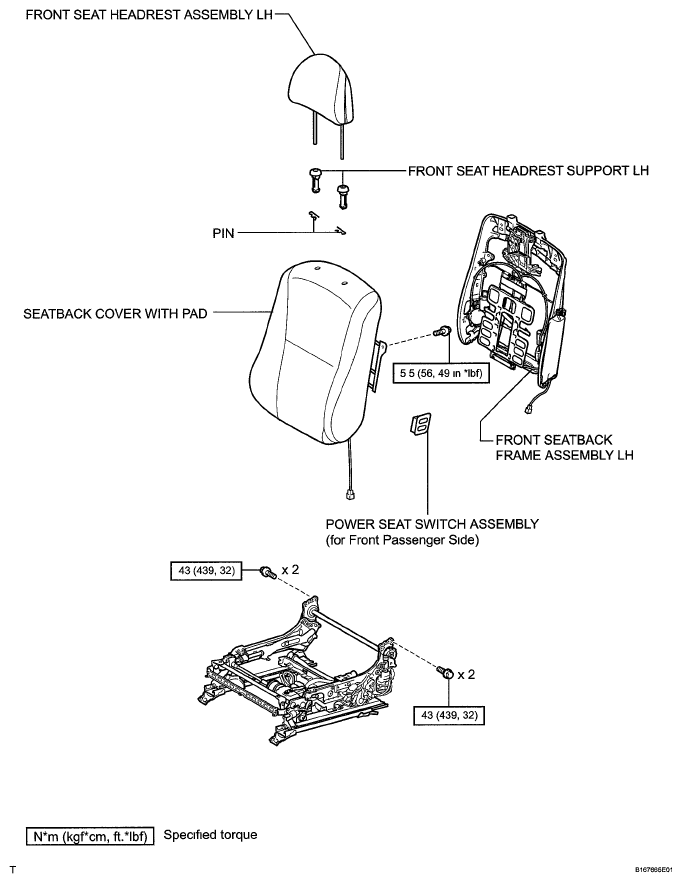

Fig 2: Front Power Seat Motor Assembly Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

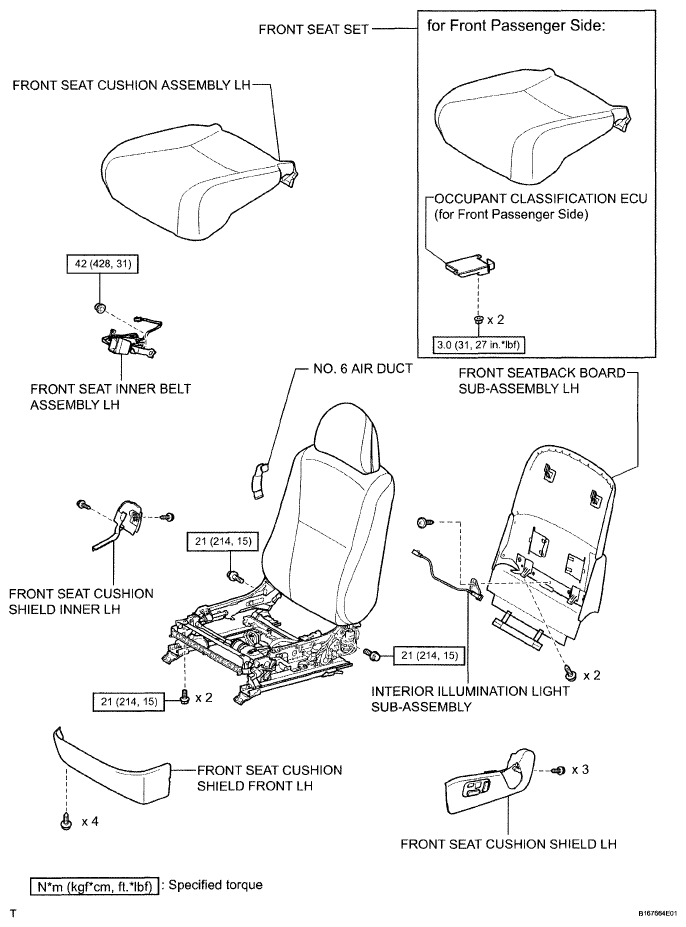

Fig 3: Front Power Seat Motor Assembly Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

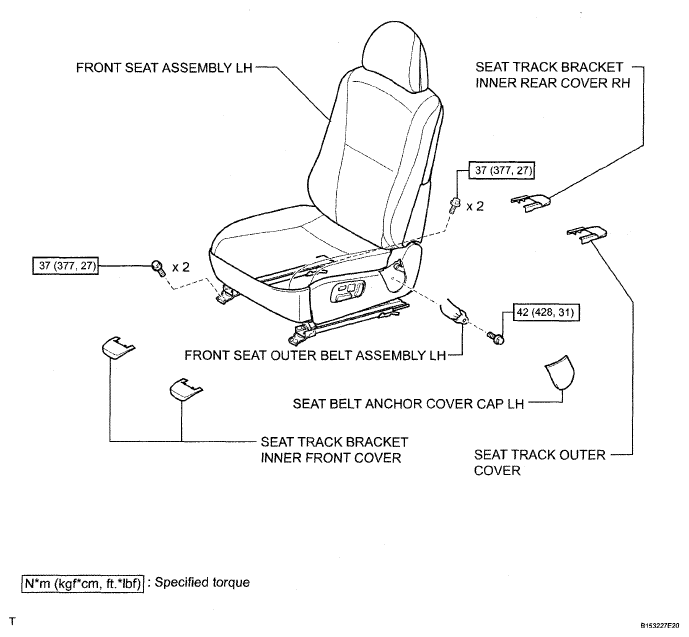

Fig 4: Front Power Seat Motor Assembly Replacement Components With Torque Specifications (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

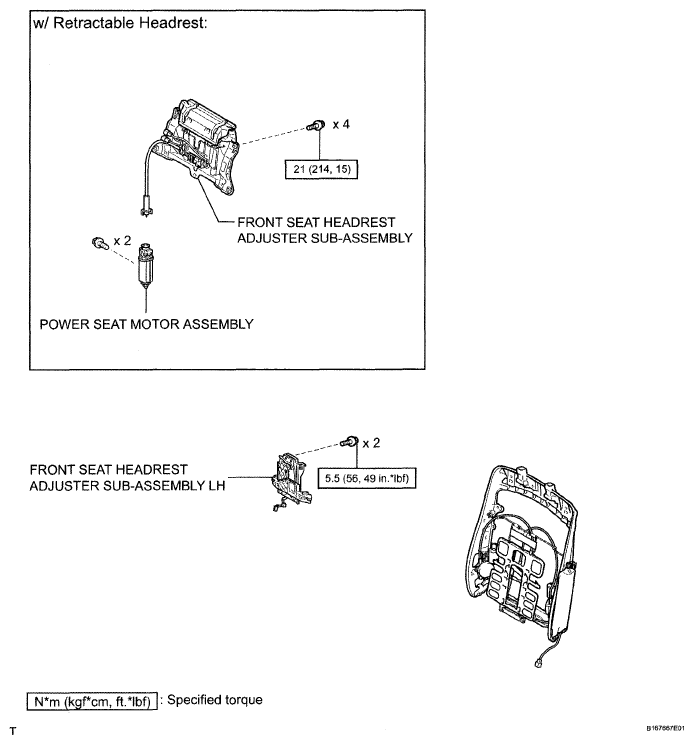

Fig 5: Front Power Seat Motor Assembly Replacement Components With Torque Specifications (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
