LEXUS Link System (Mayday System): Notes

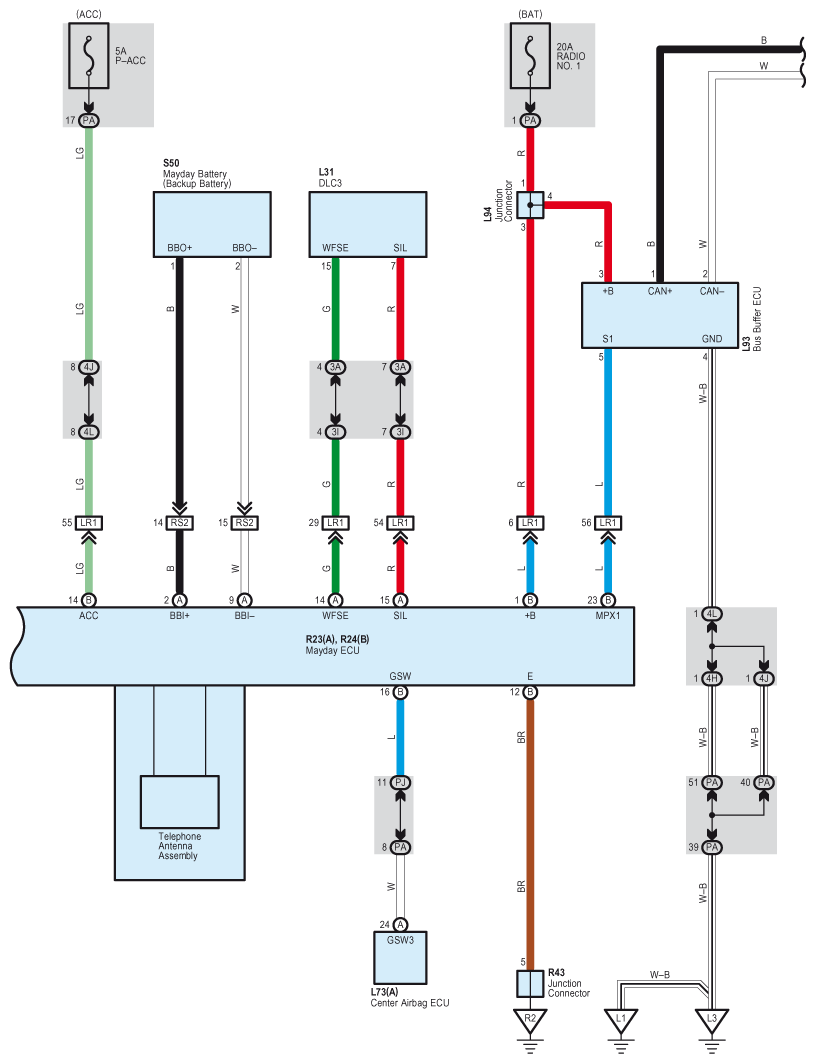

Fig 1: Lexus Link System (Mayday System) - Circuit Diagram (1 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

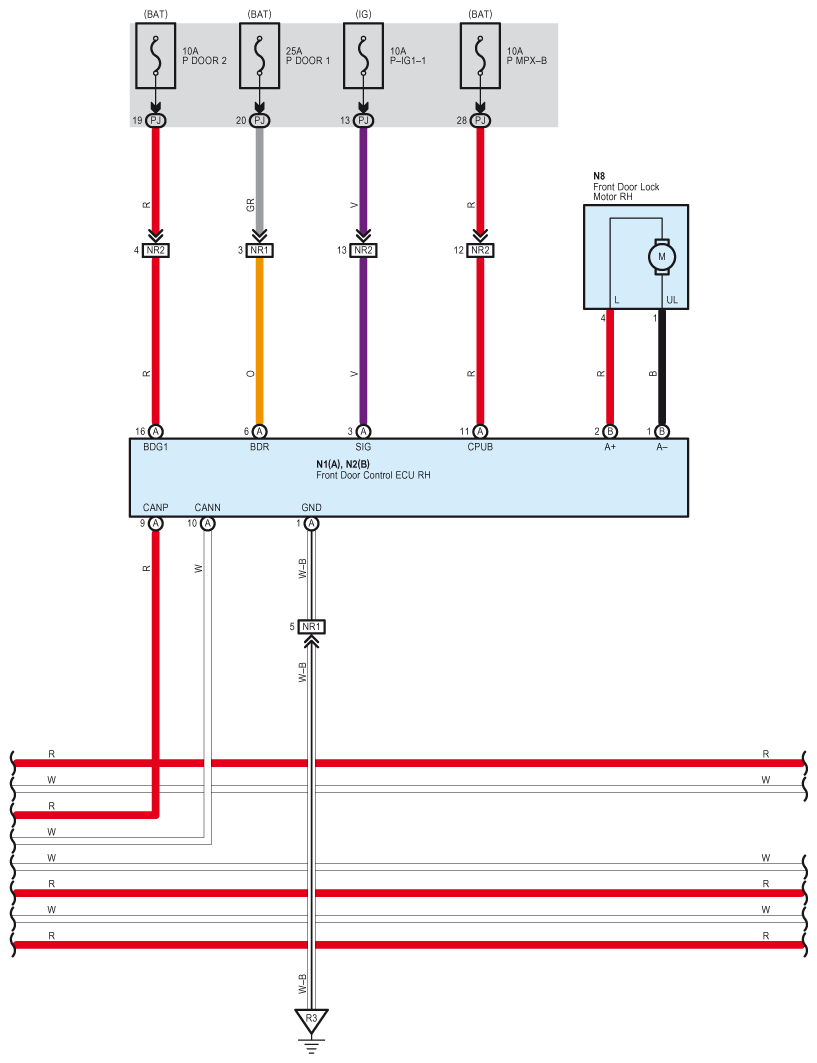

Fig 2: Lexus Link System (Mayday System) - Circuit Diagram (2 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

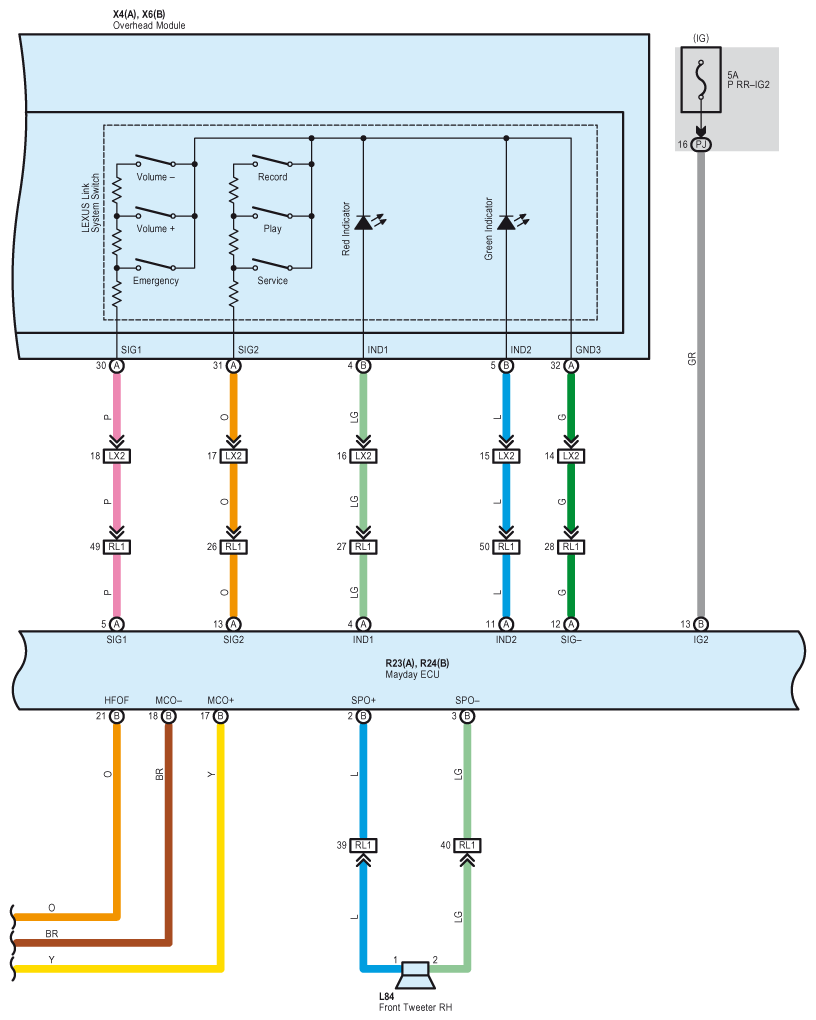

Fig 3: Lexus Link System (Mayday System) - Circuit Diagram (3 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

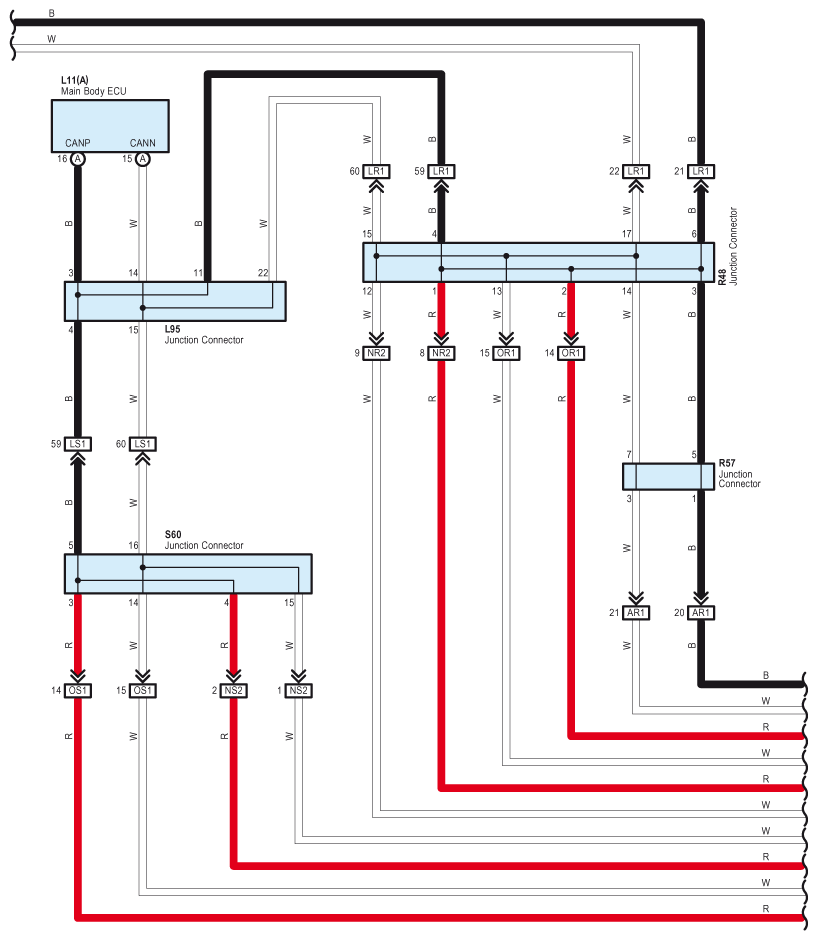

Fig 4: Lexus Link System (Mayday System) - Circuit Diagram (4 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

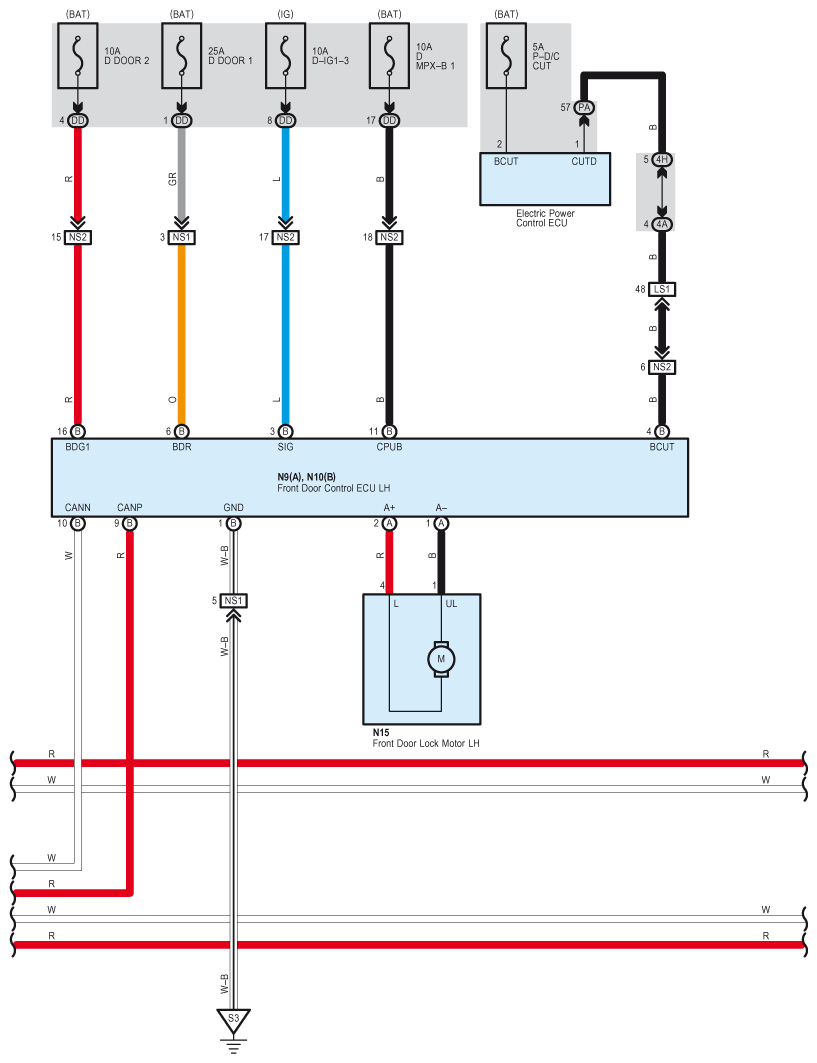

Fig 5: Lexus Link System (Mayday System) - Circuit Diagram (5 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

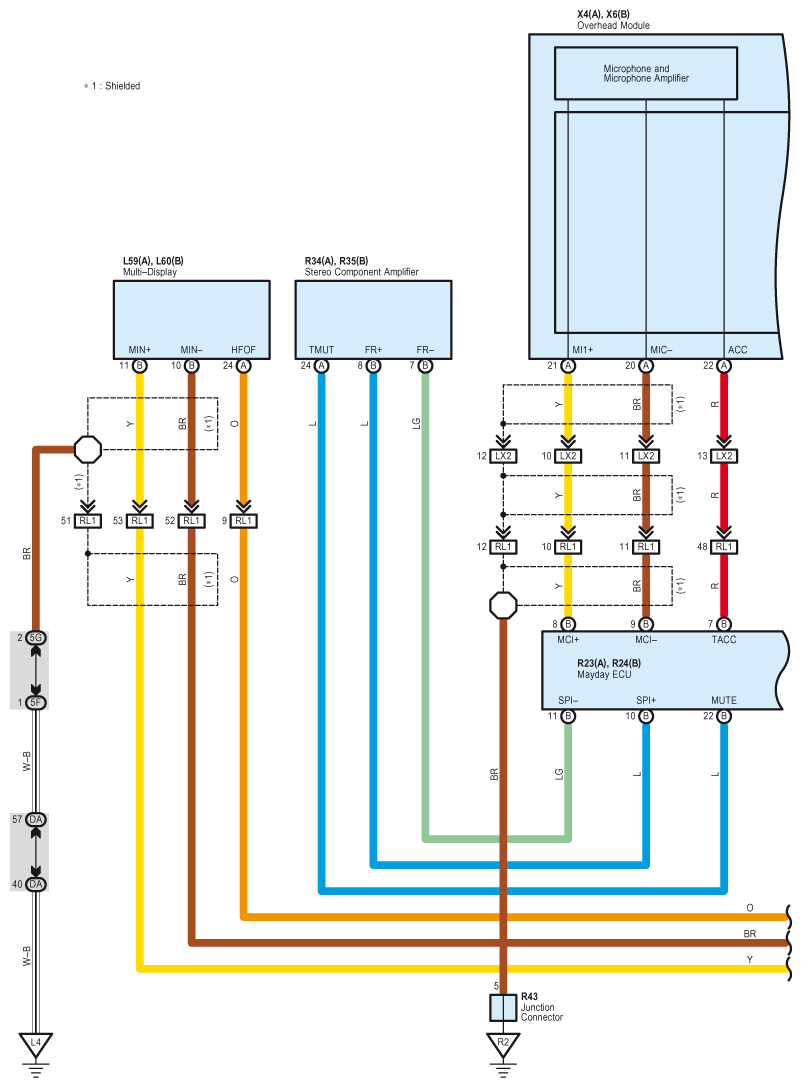

Fig 6: Lexus Link System (Mayday System) - Circuit Diagram (6 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

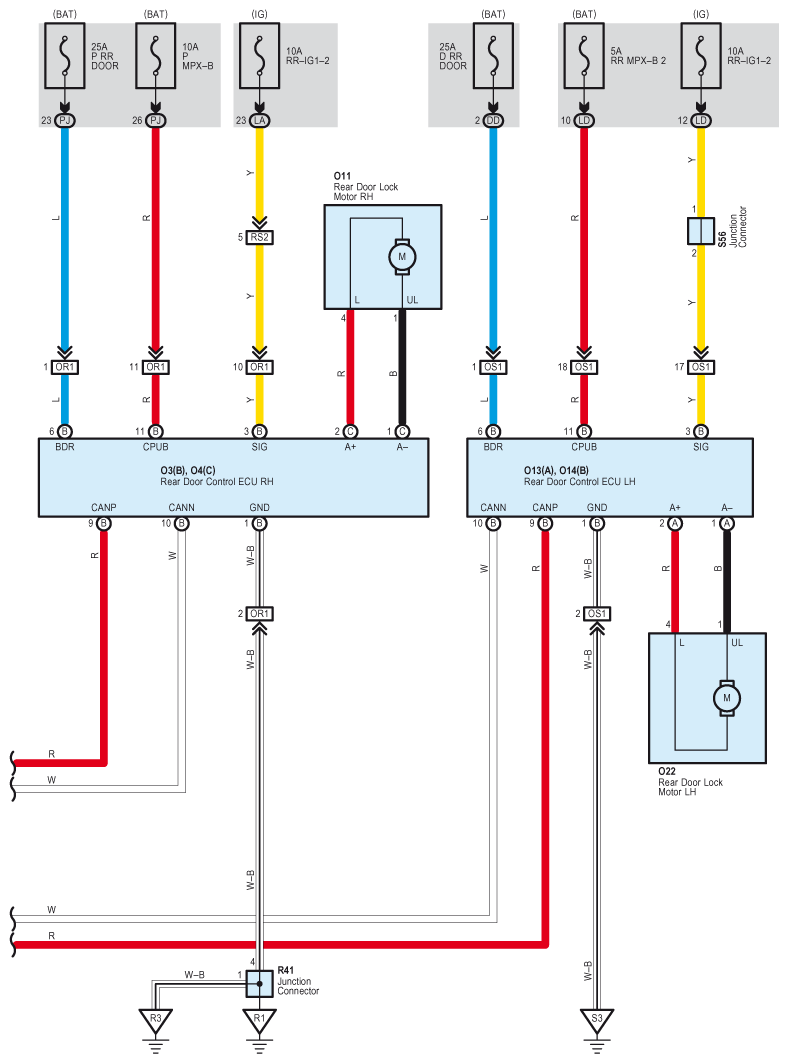

Fig 7: Lexus Link System (Mayday System) - Circuit Diagram (7 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

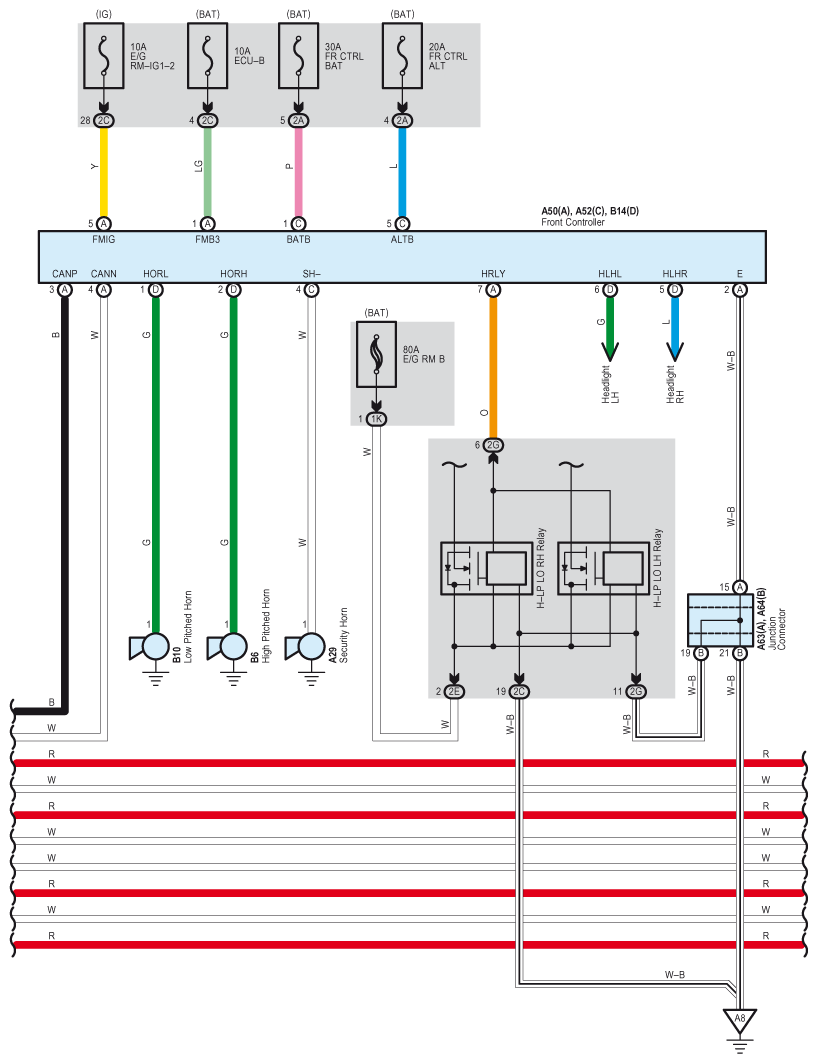

Fig 8: Lexus Link System (Mayday System) - Circuit Diagram (8 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
