Exhaust Manifold: Components

Fig 1: Identifying Exhaust Manifold Replacement Components With Torque Specifications (1 Of 5)
G04943744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Exhaust Manifold Replacement Components (2 Of 5)
G04943745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

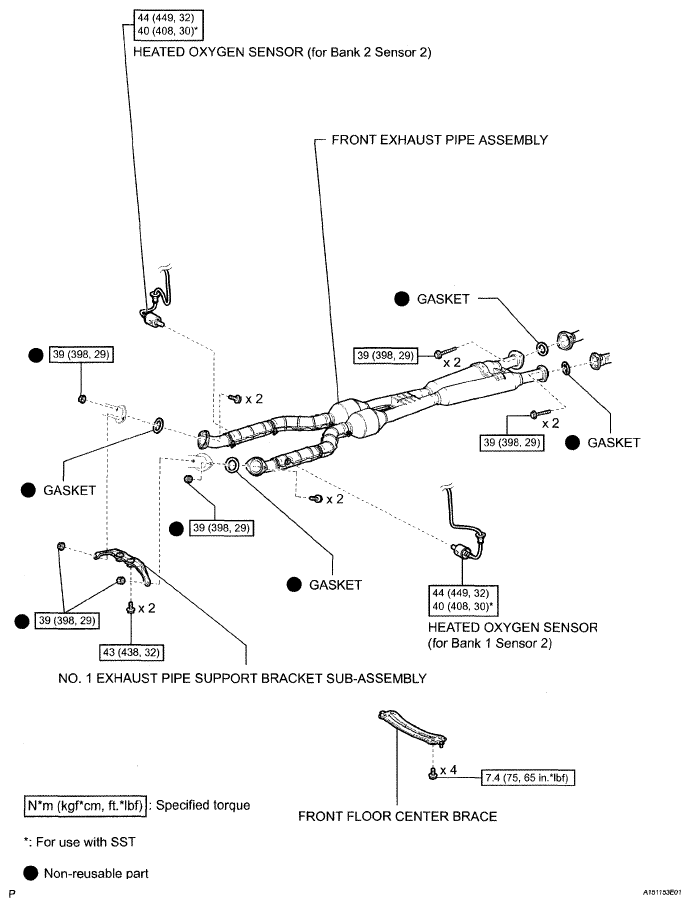

Fig 3: Identifying Exhaust Manifold Replacement Components With Torque Specifications (3 Of 5)
G04943746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Exhaust Manifold Replacement Components With Torque Specifications (4 Of 5)
G04943747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

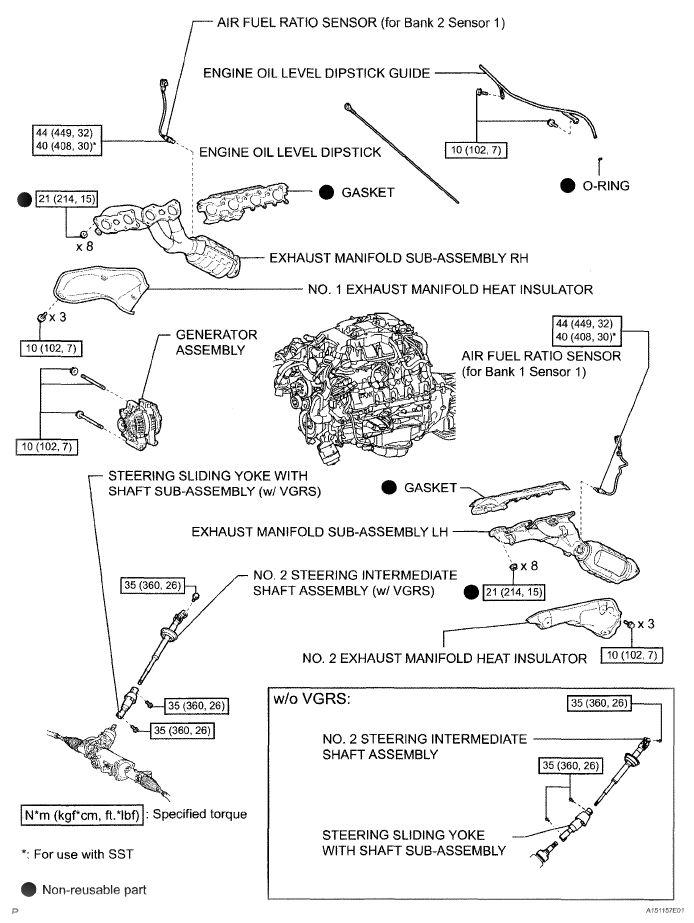

Fig 5: Exhaust Manifold Replacement Components With Torque Specifications (5 Of 5)
G04943748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
