Home >> Lexus >> 2008 >> LS 460L >> Repair and Diagnosis >> Steering >> Steering Column >> Multiplex Tilt And Telescopic Ecu >> Components

Multiplex Tilt And Telescopic Ecu: Components

Fig 1: Multiplex Tilt And Telescopic ECU Replacement Components With Torque Specifications (1 Of 2)
G04950301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

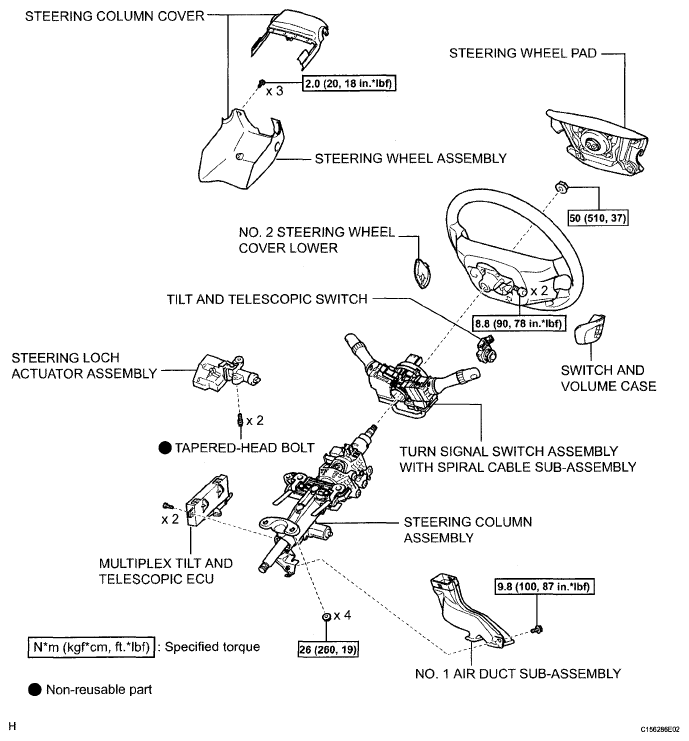

Fig 2: Multiplex Tilt And Telescopic ECU Replacement Components With Torque Specifications (2 Of 2)
G04950302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
