Home >> Lexus >> 2008 >> LS 460L >> Repair and Diagnosis >> Suspension >> Front Suspension >> Axle >> Rear Axle Hub >> Components

Rear Axle Hub: Components

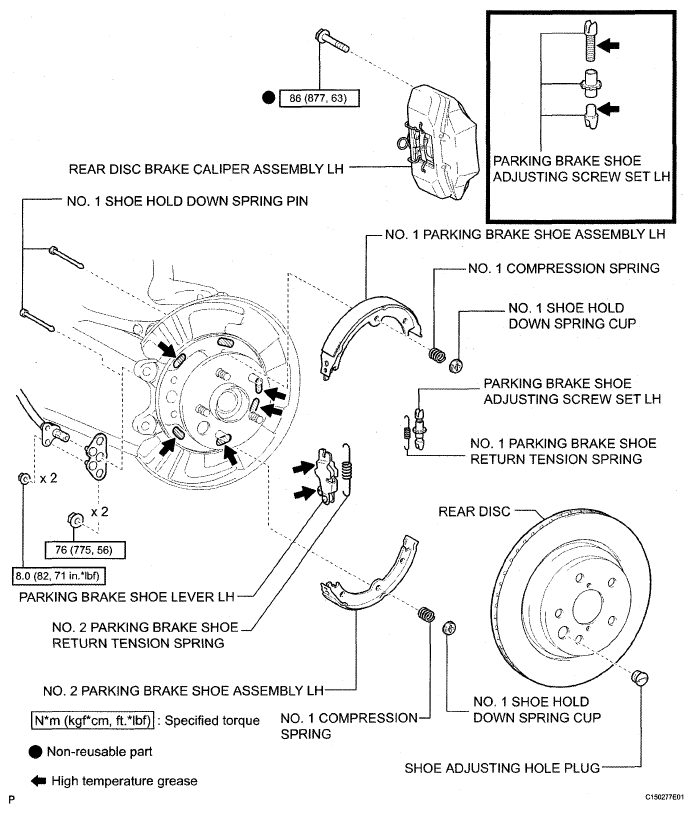

Fig 1: Identifying Rear Axle Hub Replacement Components With Torque Specifications (1 Of 3)
G04944052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

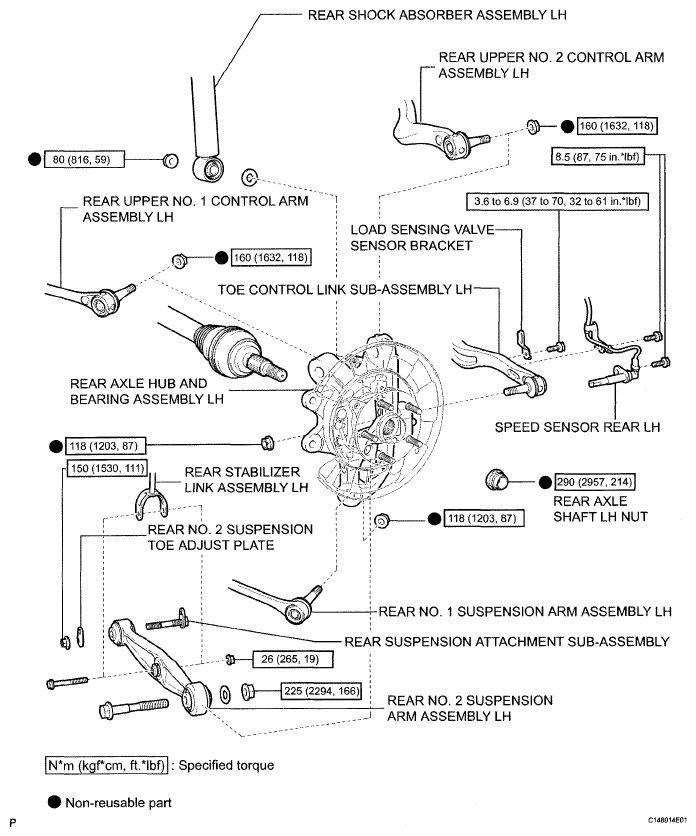

Fig 2: Identifying Rear Axle Hub Replacement Components With Torque Specifications (2 Of 3)
G04944053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

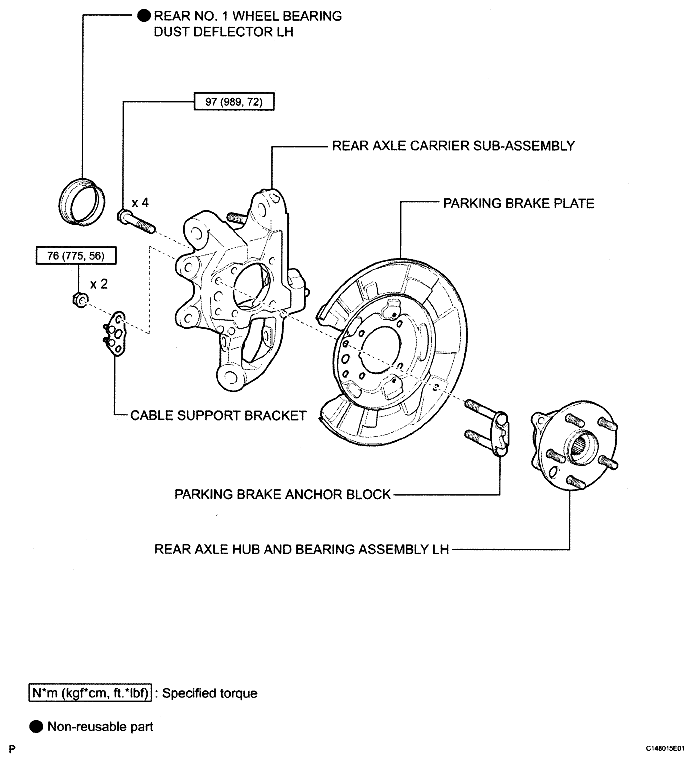

Fig 3: Identifying Rear Axle Hub Replacement Components With Torque Specifications (3 Of 3)
G04944054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
