DTC Check/Clear

  1. CHECK DTC
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Chassis/Air suspension/Trouble Codes.
    5. Read the DTCs by following the prompts on the Techstream screen.

      HINT:

      Refer to the Techstream operator's manual for further details.

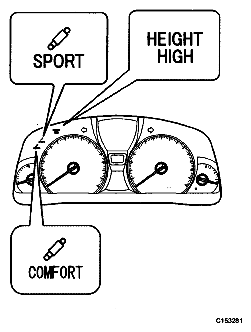

      Fig 1: Identifying Indicator Light
      G04944119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Refer to DIAGNOSTIC TROUBLE CODE TABLE  for DTC information.
  2. CLEAR DTC

    HINT:

    After repairing the malfunctions, clear the DTCs.

    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Chassis / Air suspension / Trouble Codes.
    5. Erase the DTCs by following the prompts on the Techstream screen.

      HINT:

      Refer to the Techstream operator's manual for further details.
