Height Control Compressor: Components

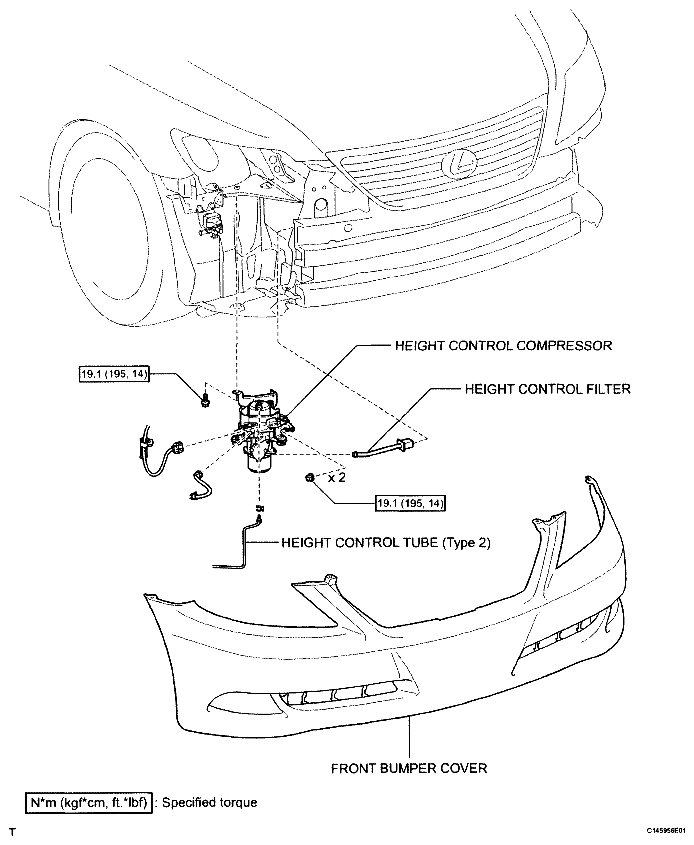

Fig 1: Identifying Height Control Compressor Replacement Components With Torque Specifications (1 Of 2)
G04944184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

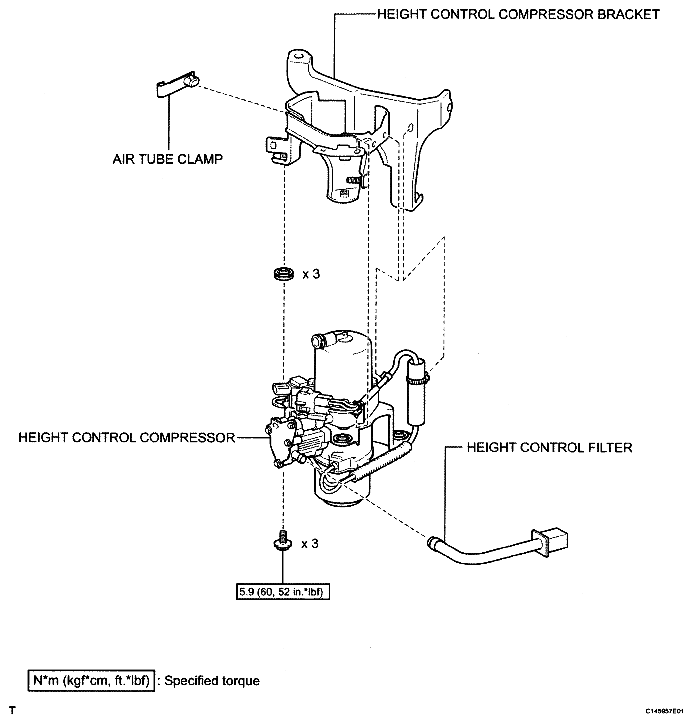

Fig 2: Identifying Height Control Compressor Replacement Components With Torque Specifications (2 Of 2)
G04944185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
