Front Door Lock: Components

Fig 1: Front Door Lock Replacement Components With Torque Specifications (1 Of 3)
G05784563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Front Door Lock Replacement Components With Torque Specifications (2 Of 3)
G05783270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

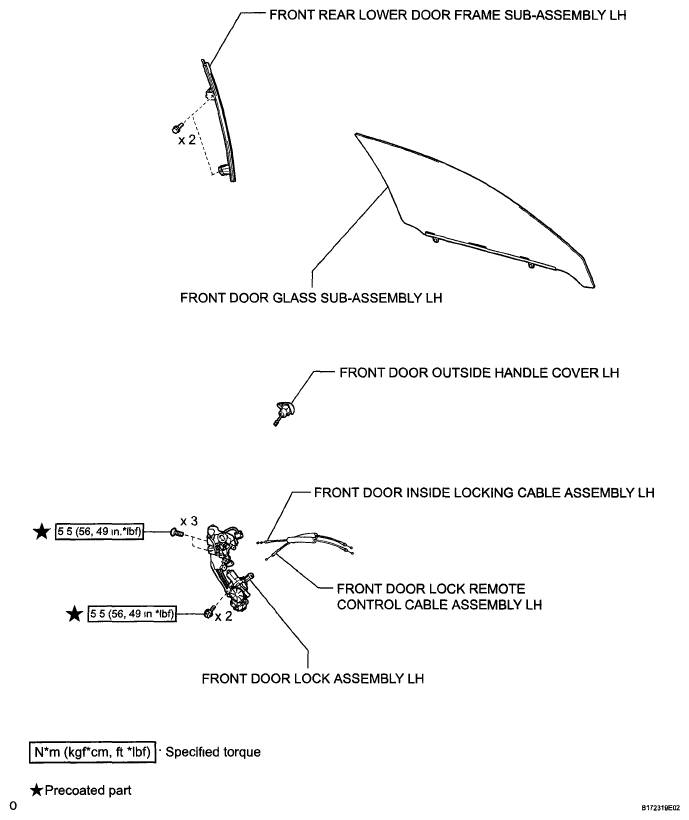

Fig 3: Front Door Lock Replacement Components With Torque Specifications (3 Of 3)
G05783271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
