Multiplex Communication System - AVC-LAN: Notes

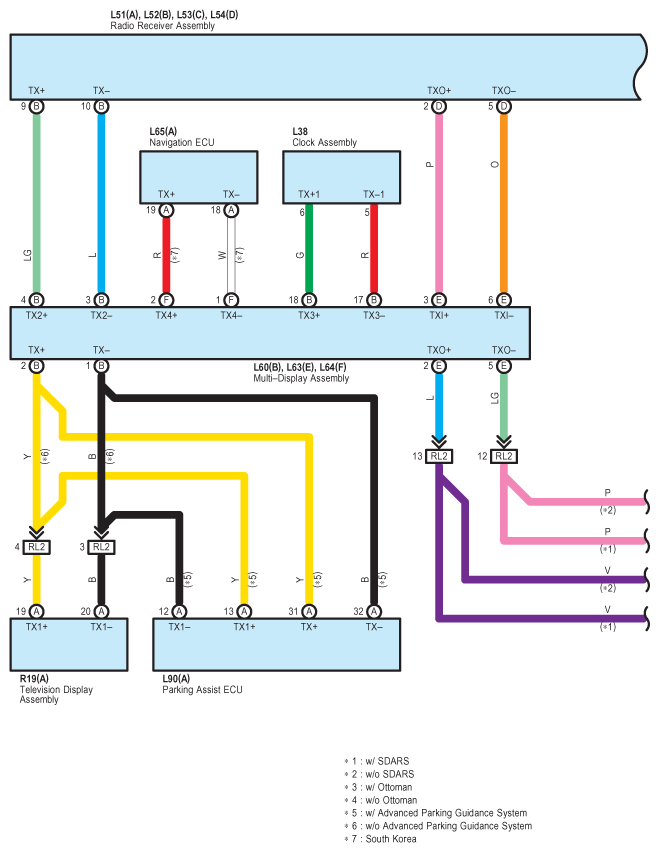

Fig 1: Multiplex Communication System (AVC-LAN) - Circuit Diagram (1 Of 2)
G07592828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

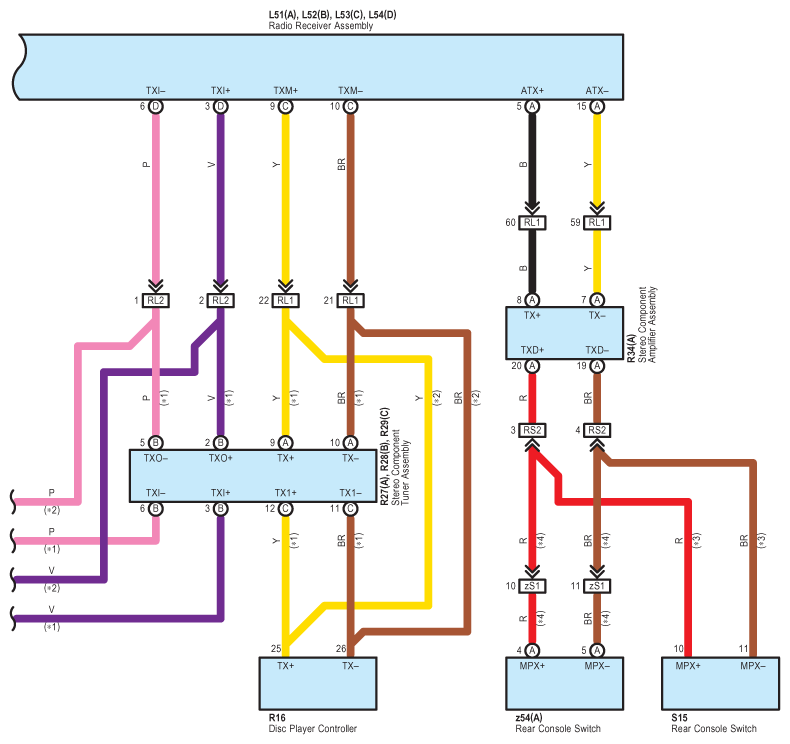

Fig 2: Multiplex Communication System (AVC-LAN) - Circuit Diagram (2 Of 2)
G07592829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
