Home >> Lexus >> 2008 >> LS 600hL >> Repair and Diagnosis >> Electrical >> Gauges >> Meter >> Light Control Rheostat >> Components

Light Control Rheostat: Components

Fig 1: Identifying Light Control Rheostat Components (1 Of 2)
G05776308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

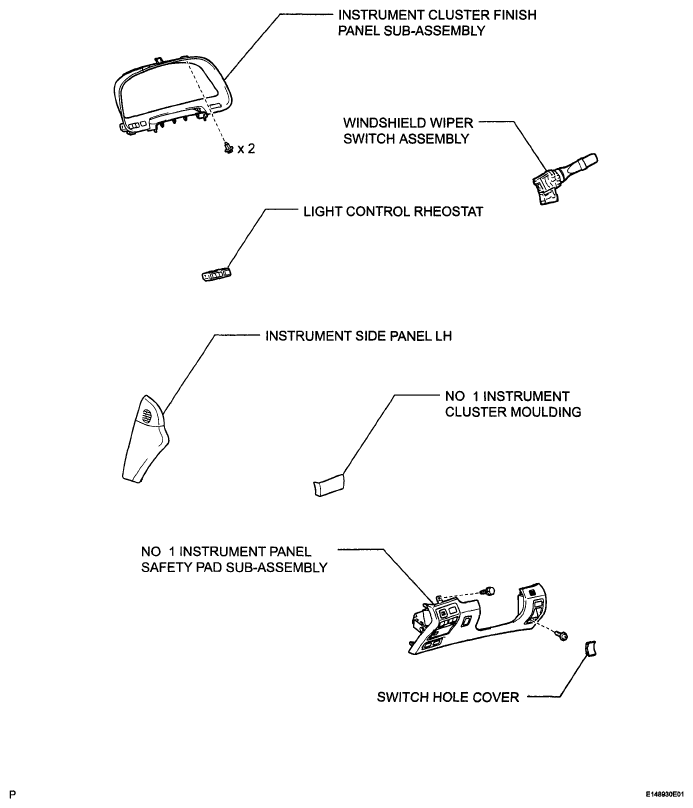

Fig 2: Identifying Light Control Rheostat Components (2 Of 2)
G05776309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
