Camshaft Oil Control Valve: Components

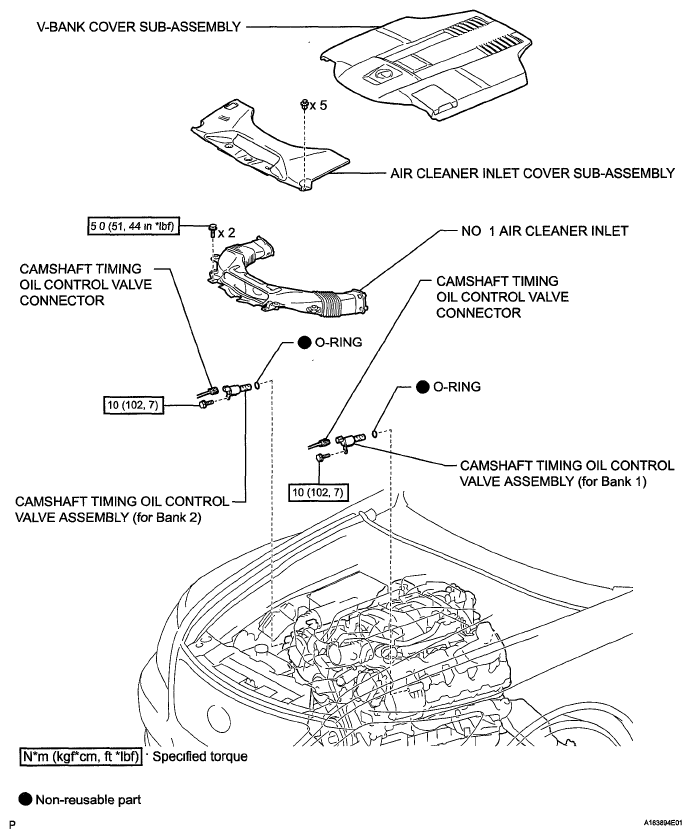

Fig 1: Camshaft Oil Control Valve Replacement Components With Torque Specifications

G05771199

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
