Camshaft Timing Control Motor: Components

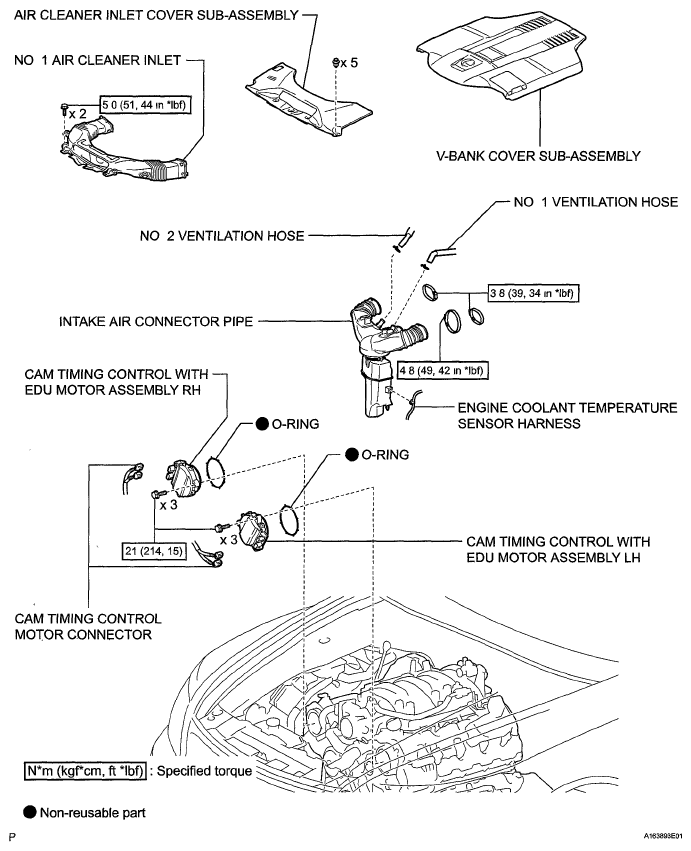

Fig 1: Camshaft Timing Control Motor Replacement Components With Torque Specifications

G05771205

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
