Crankshaft Position Sensor: Components

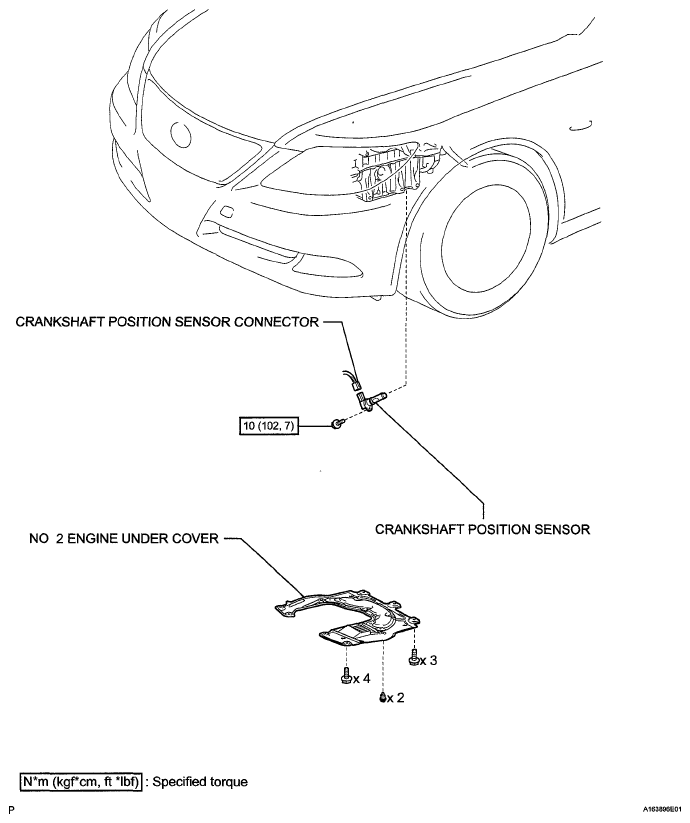

Fig 1: Crankshaft Position Sensor With Torque Specification

G05771254

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
