Rear Axle Hub: Components

Fig 1: Rear Axle Hub Replacement Components With Torque Specifications (1 Of 3)
G05773635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

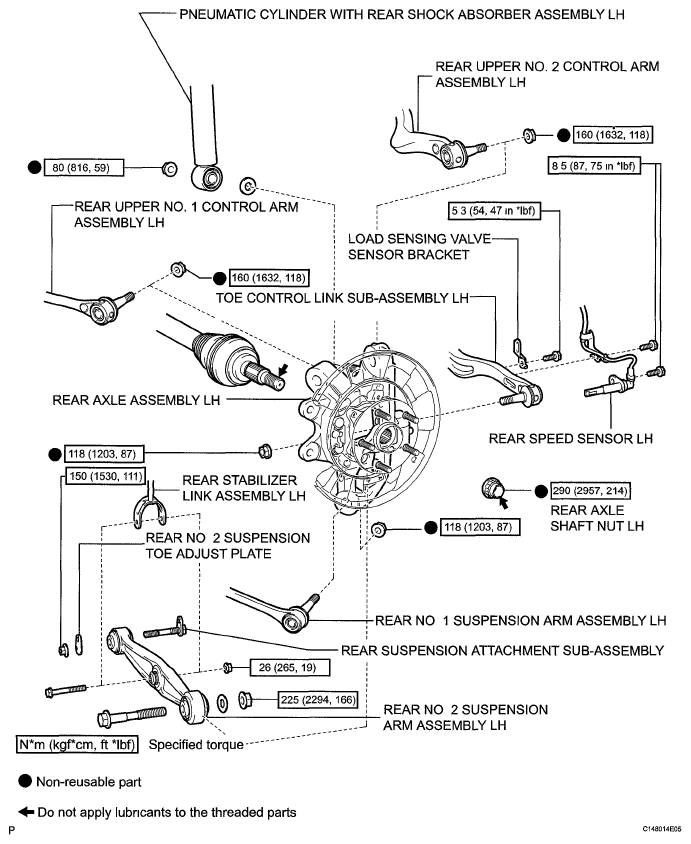

Fig 2: Rear Axle Hub Replacement Components With Torque Specifications (2 Of 3)
G05773636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

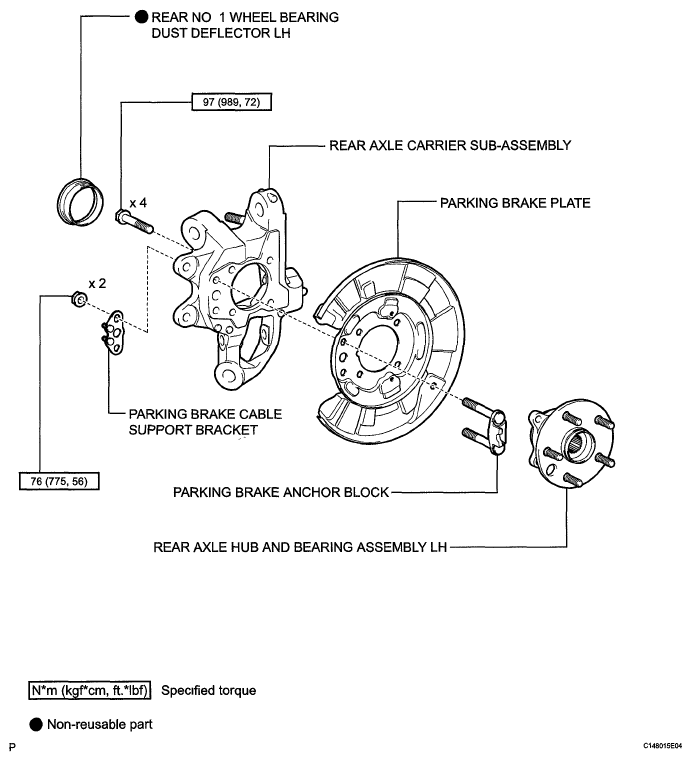

Fig 3: Rear Axle Hub Replacement Components With Torque Specifications (3 Of 3)
G05773637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
