Home >> Lexus >> 2008 >> LS 600hL >> Repair and Diagnosis >> Suspension >> Suspension Control Systems >> Suspension Control >> Front Acceleration Sensor >> Components

Front Acceleration Sensor: Components

Fig 1: Rear Acceleration Sensor Replacement Components With Torque Specifications (1 Of 4)
G05773787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

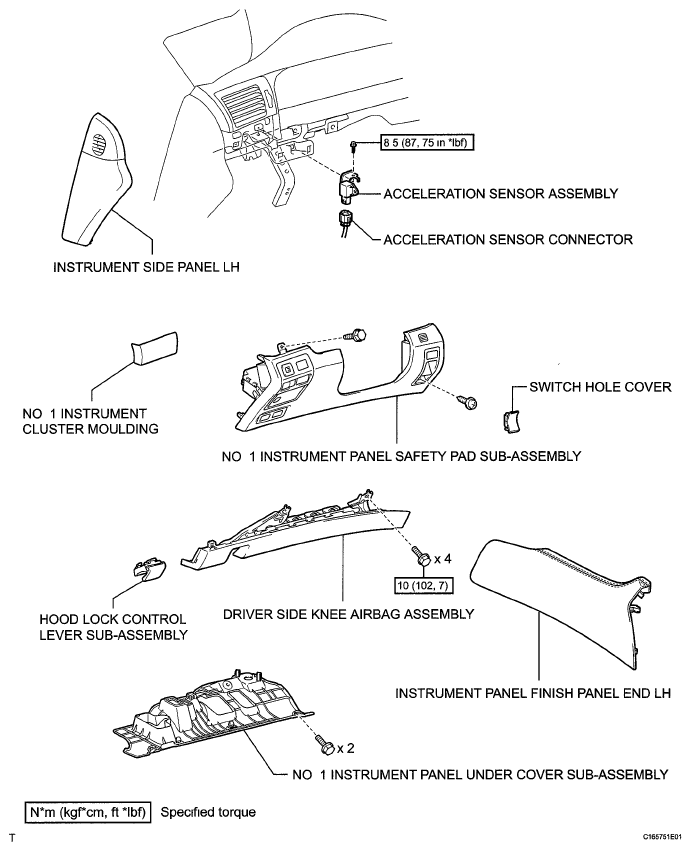

Fig 2: Front Acceleration Sensor Replacement Components With Torque Specifications (2 Of 2)
G05773851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
