Suspension Control Ecu: Components

Fig 1: Rear Acceleration Sensor Replacement Components With Torque Specifications (1 Of 4)
G05773787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

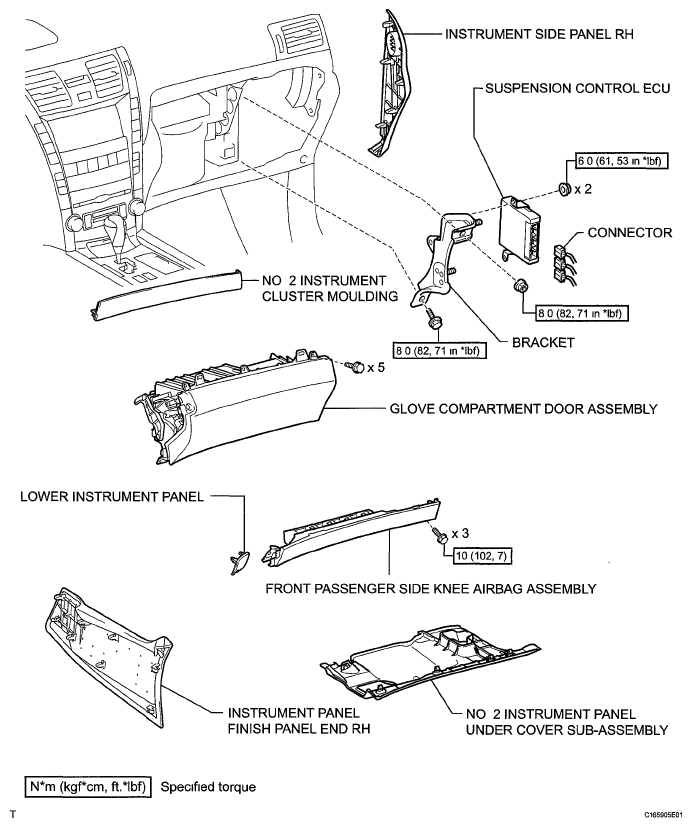

Fig 2: Suspension Control ECU Replacement Components With Torque Specifications (2 Of 2)
G05773840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

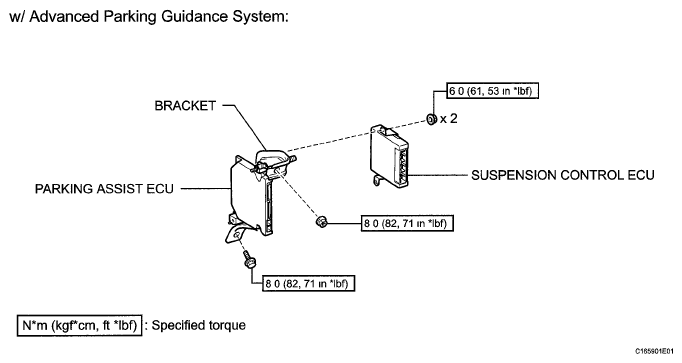

Fig 3: Suspension Control ECU Replacement Components With Torque Specifications (W/ Advanced Parking Guidance System)
G05773841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

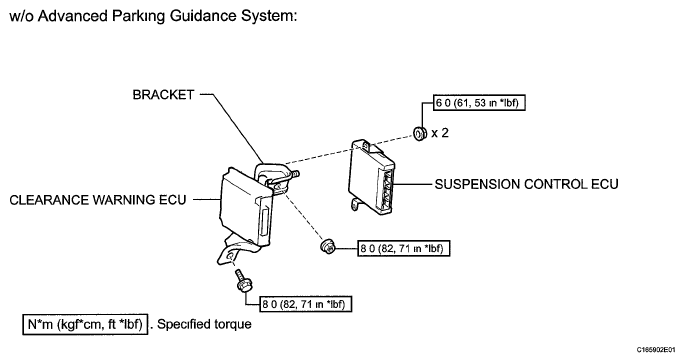

Fig 4: Suspension Control ECU Replacement Components With Torque Specifications (W/O Advanced Parking Guidance System)
G05773842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
