Back Window Glass: Components

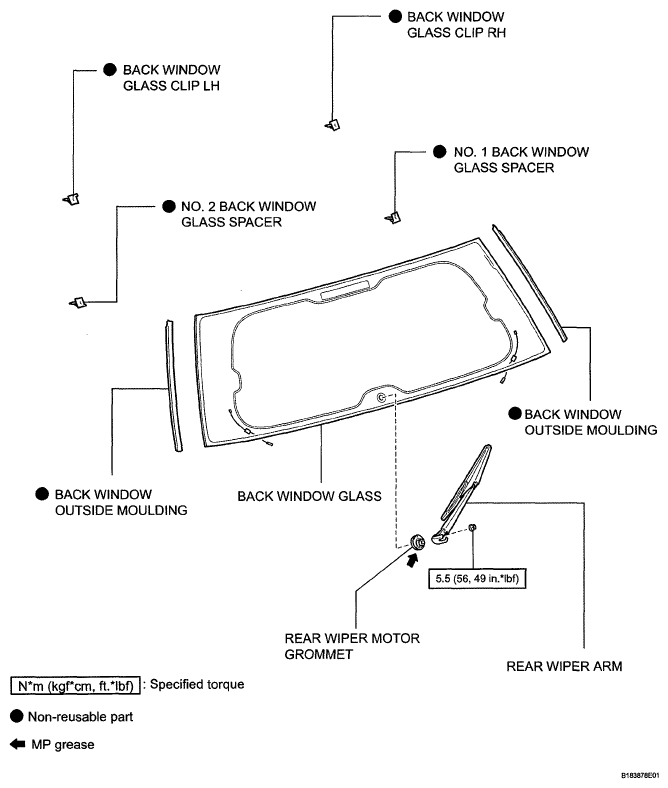

Fig 1: Identifying Back Window Glass Replacement Components With Torque Specification (1 Of 3)
G05636406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

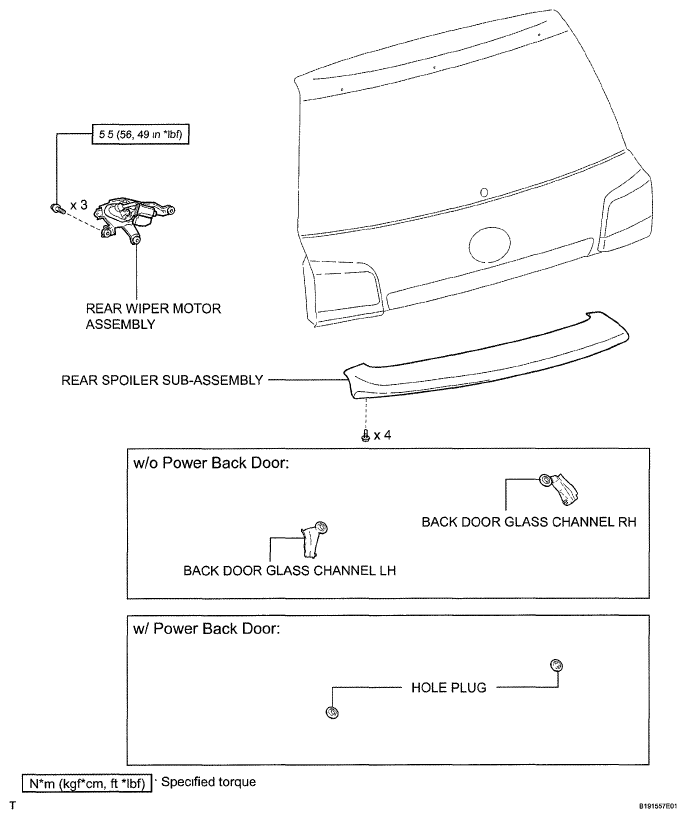

Fig 2: Identifying Back Window Glass Replacement Components With Torque Specification (2 Of 3)
G05767524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

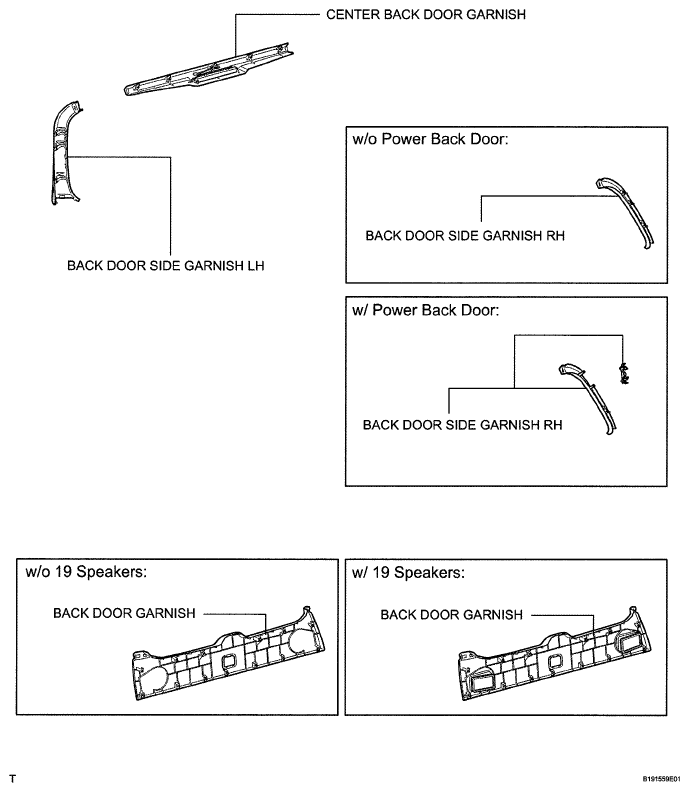

Fig 3: Identifying Back Window Glass Replacement Components (3 Of 3)
G05767525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
