System Diagram

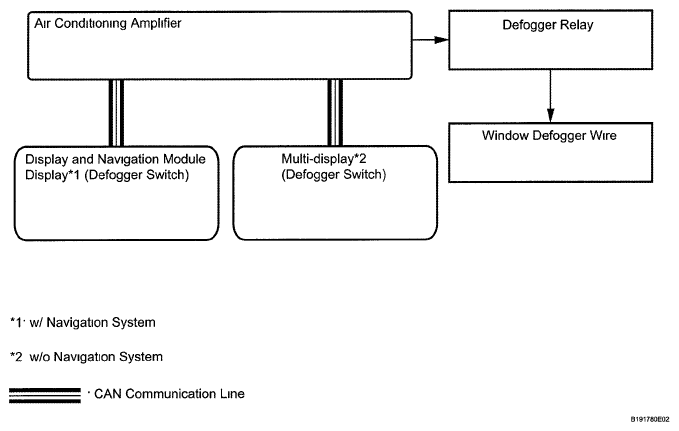

Fig 1: Window Defogger Wiring Diagram
G05767562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table

COMMUNICATION REFERENCE

Transmitter Receiver Signal Line
Display and navigation module display(1) Air conditioning amplifier Rear window defogger switch signal CAN
Multi-display(2) Air conditioning amplifier Rear window defogger switch signal CAN
(1) w/ Navigation System
(2) w/o Navigation System
