Windshield Glass
>>
Components
Windshield Glass: Components

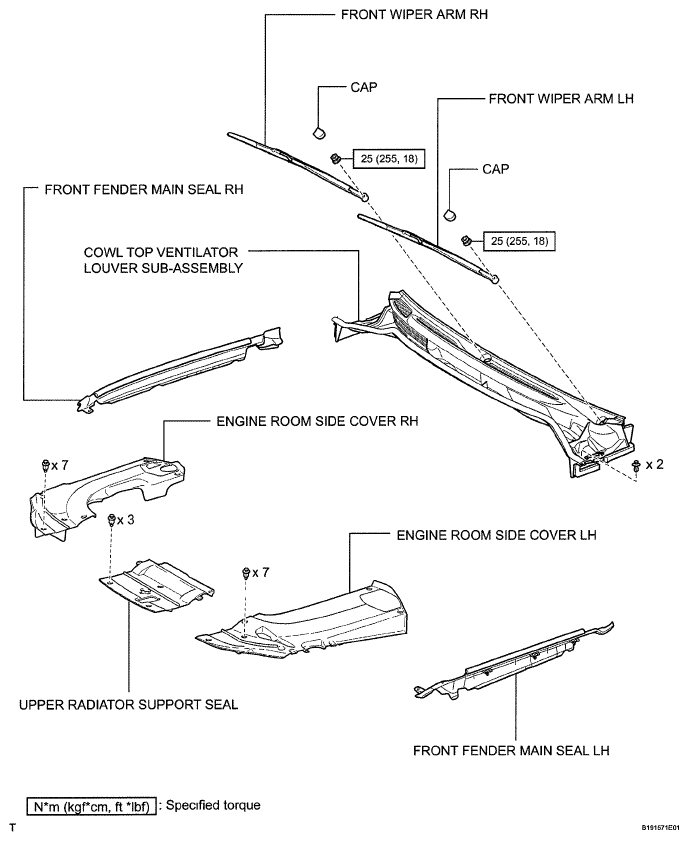

Fig 1: Identifying Windshield Glass And Replacement Components With Torque Specification (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

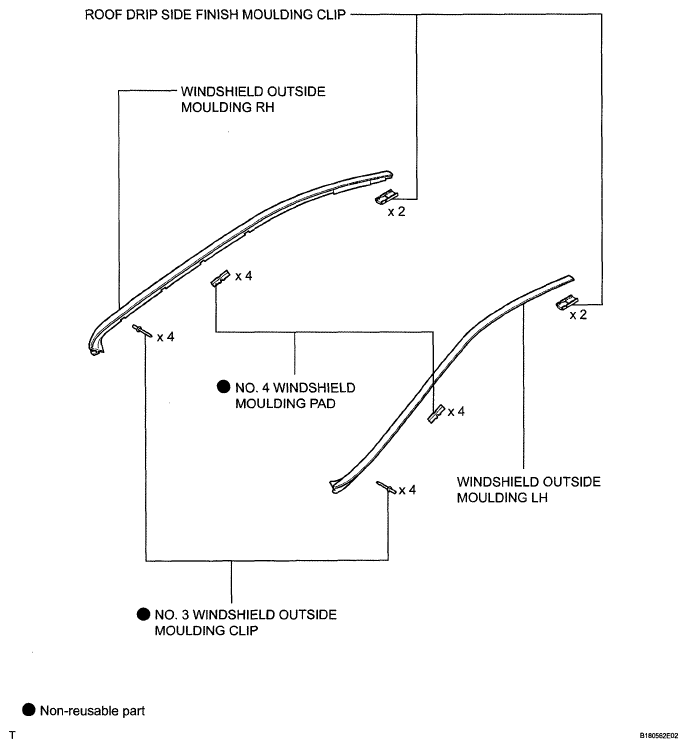

Fig 2: Identifying Windshield Glass And Replacement Components (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

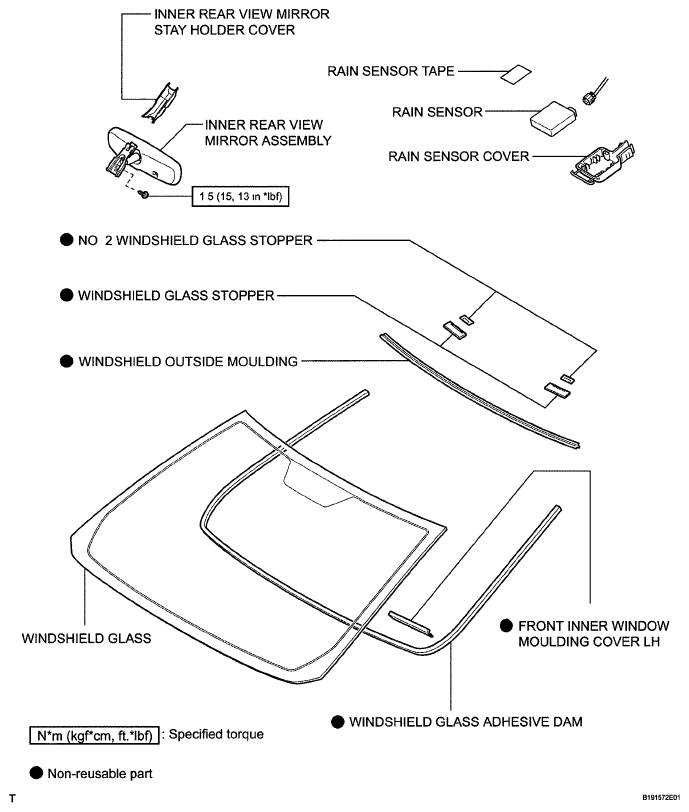

Fig 3: Identifying Windshield Glass And Replacement Components (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Windshield Glass And Replacement Components With Torque Specification (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
