Home >> Lexus >> 2008 >> LX 570 >> Repair and Diagnosis >> Brakes >> Brakes Control Systems >> Brake Control / Dynamic Control Systems >> Crawl Switch >> Components

Crawl Switch: Components

Fig 1: Identifying CRAWL Switch Components (1 Of 2)
G05761728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

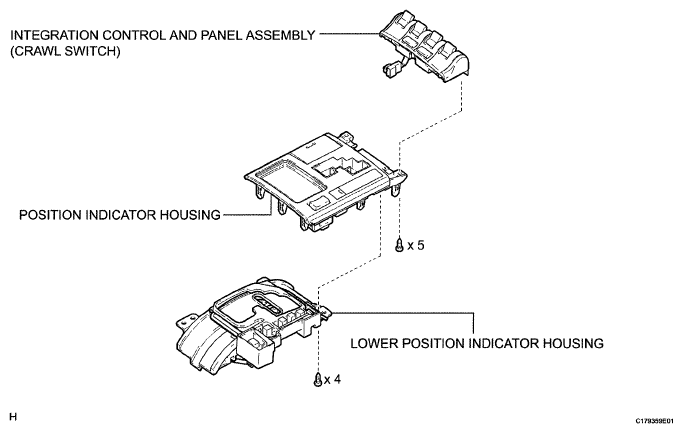

Fig 2: Identifying CRAWL Switch Components (2 Of 2)
G05761729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
