Power Outlet for 12V: Notes

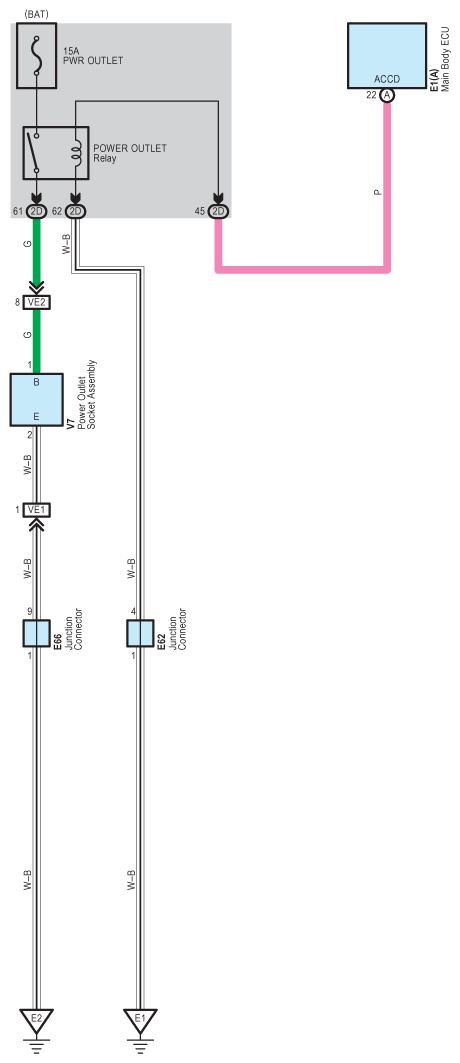

Fig 1: Power Outlet For 12V - Circuit Diagram
G07597001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
