Home >> Lexus >> 2008 >> LX 570 >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Intake System / Exhaust System >> Intake Manifold >> Components

Intake Manifold: Components

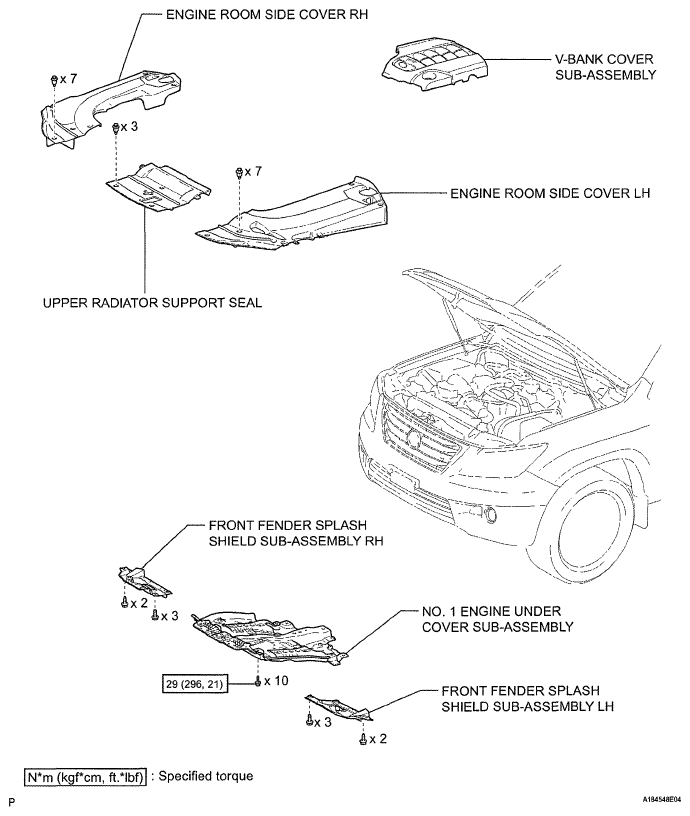

Fig 1: Intake Manifold Replacement Components With Torque Specifications (1 Of 5)
G05759758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

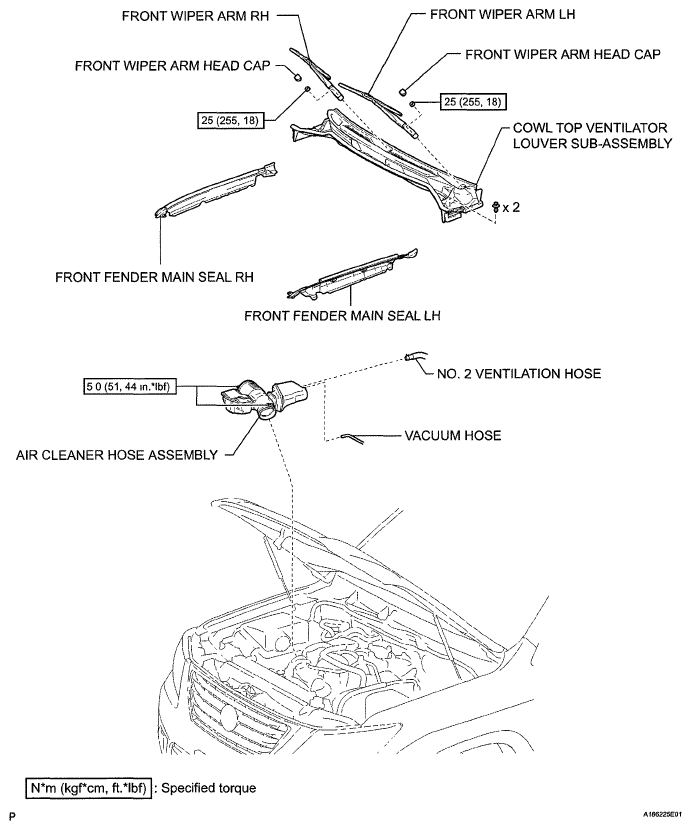

Fig 2: Intake Manifold Replacement Components With Torque Specifications (2 Of 5)
G05759759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Intake Manifold Replacement Components With Torque Specifications (3 Of 5)
G05637922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

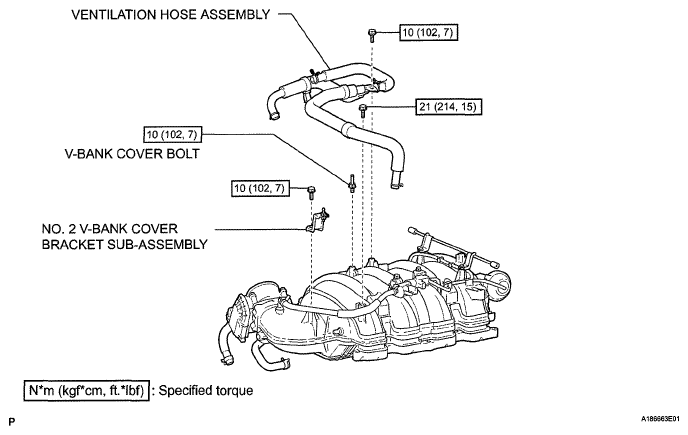

Fig 4: Intake Manifold Replacement Components With Torque Specifications (4 Of 5)
G05759761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Intake Manifold Replacement Components With Torque Specifications (5 Of 5)
G05638005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
