Home >> Lexus >> 2008 >> LX 570 >> Repair and Diagnosis >> Suspension >> Suspension Control Systems >> Suspension Control >> Access Mode Switch >> Components

Access Mode Switch: Components

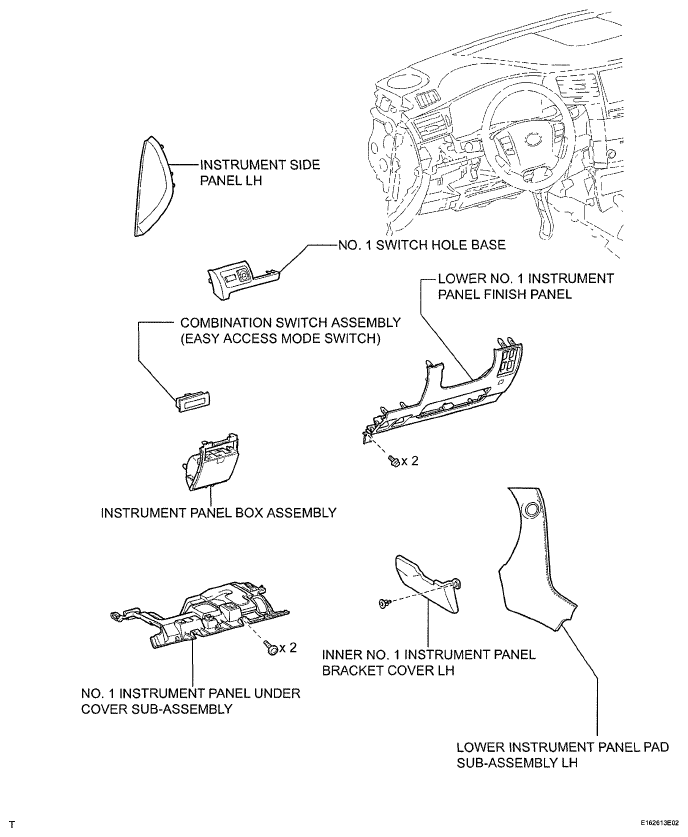

Fig 1: Identifying Access Mode Switch Components
G05761515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
