Front Acceleration Sensor: Components

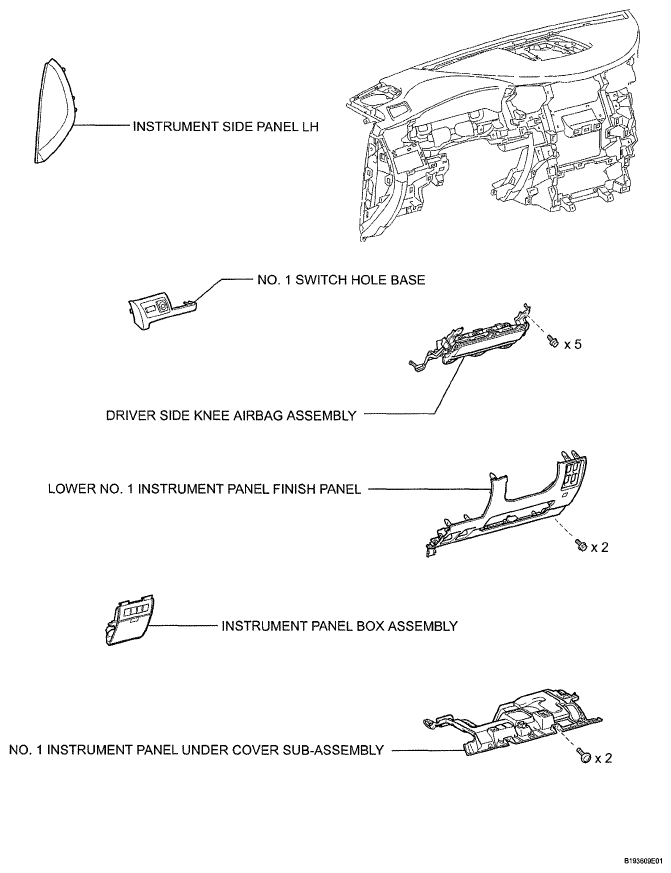

Fig 1: Identifying Front Acceleration Sensor Replacement Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

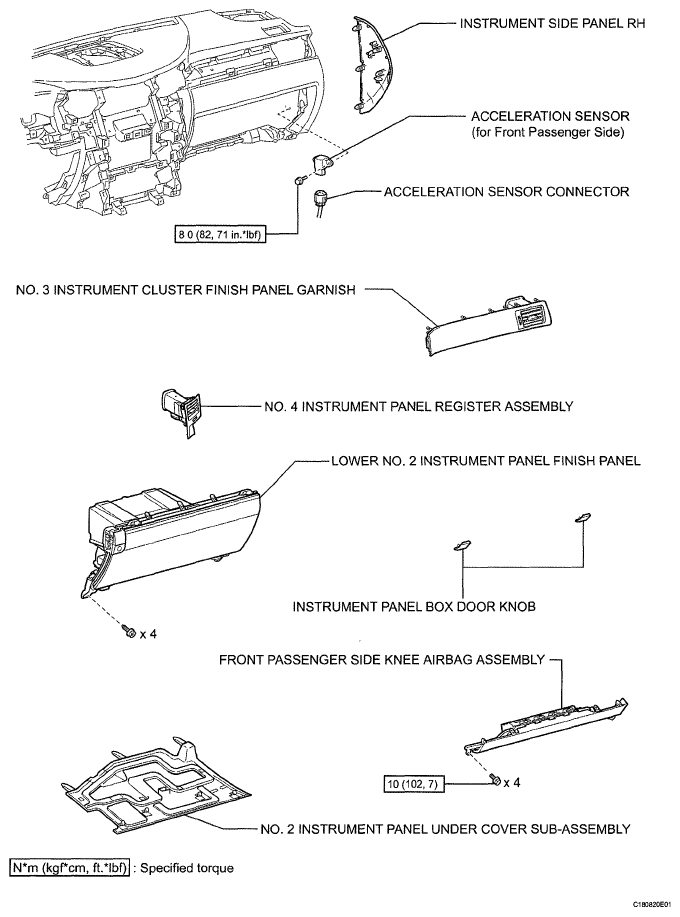

Fig 2: Identifying Front Acceleration Sensor Replacement Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

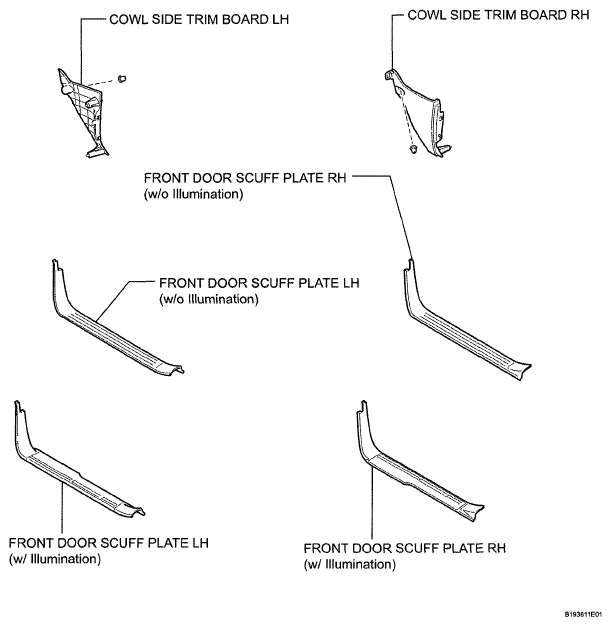

Fig 3: Identifying Front Acceleration Sensor Replacement Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

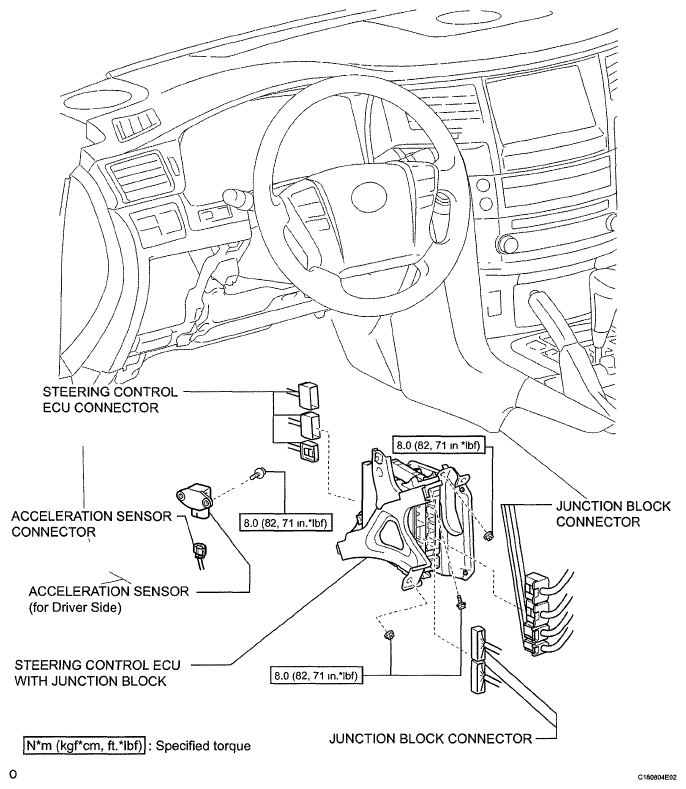

Fig 4: Identifying Front Acceleration Sensor Replacement Components With Torque Specifications (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Front Acceleration Sensor Replacement Components With Torque Specifications (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
