Suspension Control Ecu: Components

Fig 1: Identifying Suspension Control ECU Replacement Components (1 Of 3)
G05761492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Suspension Control ECU Replacement Components With Torque Specifications (2 Of 3)
G05761493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

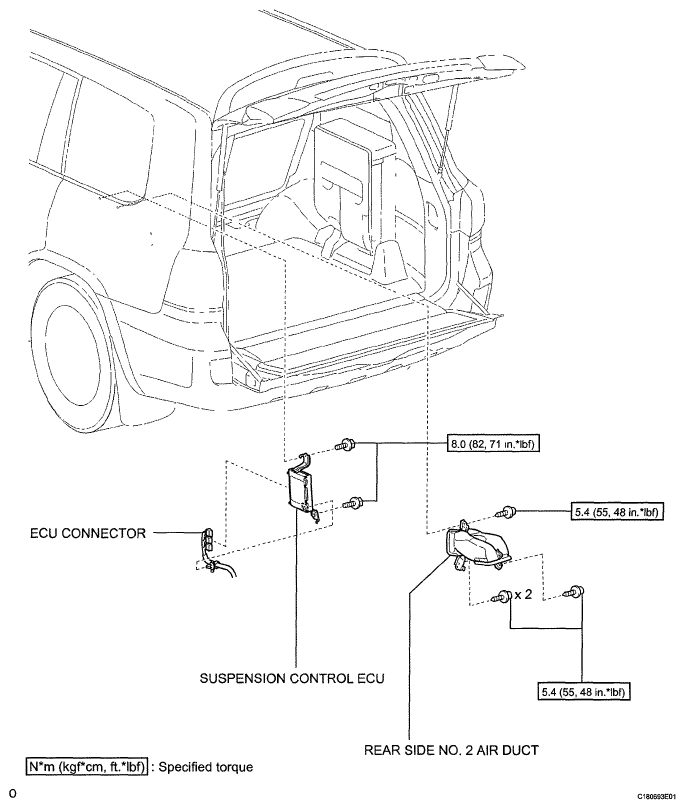

Fig 3: Identifying Suspension Control ECU Replacement Components With Torque Specifications (3 Of 3)
G05761494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
