Home >> Lexus >> 2008 >> RX 350 AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> U151F Automatic Transaxle >> Oil Pump >> Components

Oil Pump: Components

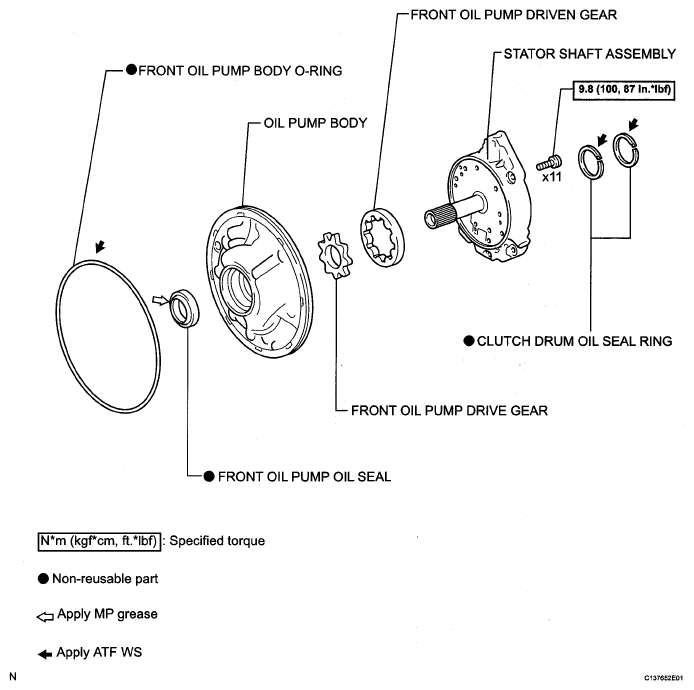

Fig 1: Oil Pump Replacement Components With Torque Specifications
G05269119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
