Home >> Lexus >> 2008 >> RX 350 AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> U151F Automatic Transaxle >> Second Brake Piston >> Components

Second Brake Piston: Components

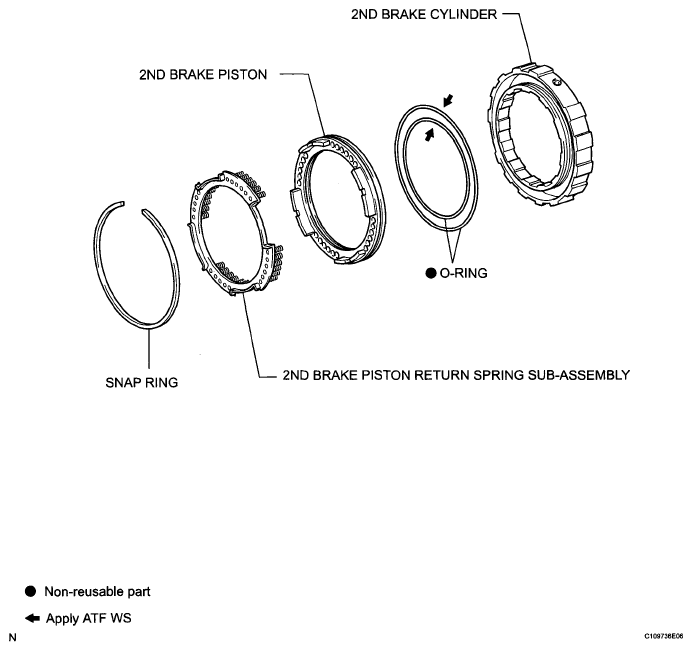

Fig 1: Identifying Second Brake Piston Components

G05841658

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
