Home >> Lexus >> 2008 >> RX 350 FWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control >> Vehicle Stability Control System >> Parts Location

Parts Location

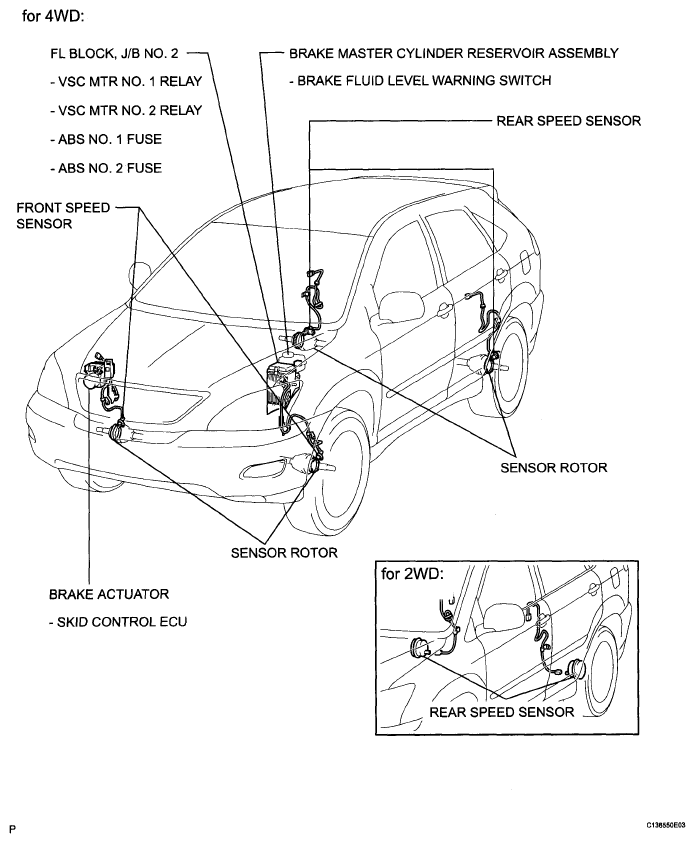

Fig 1: Identifying Brake Control System Part Location (1 Of 2)
G05841831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

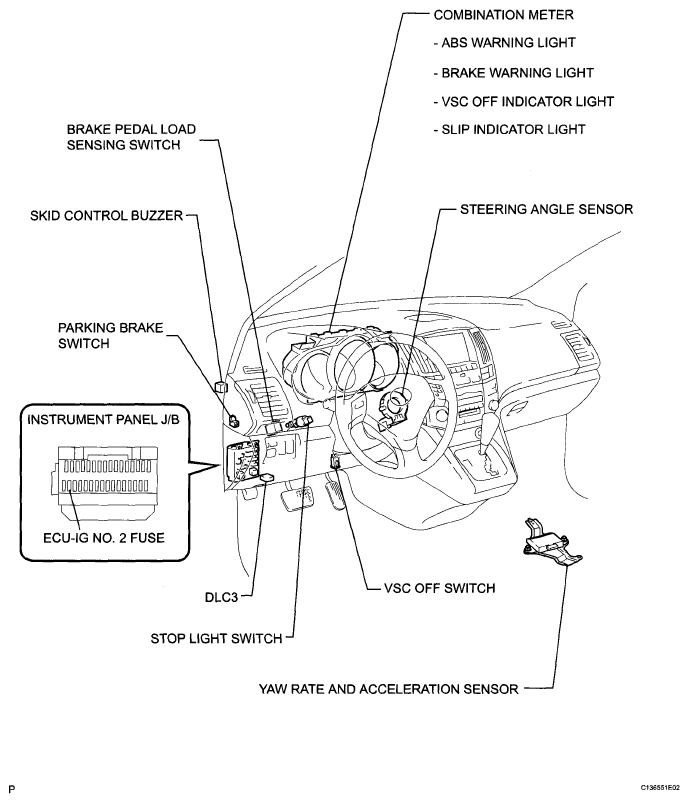

Fig 2: Identifying Brake Control System Part Location (2 Of 2)
G05841832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
