Home >> Lexus >> 2008 >> RX 350 FWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Front Window Deicer >> Notes

Front Window Deicer: Notes

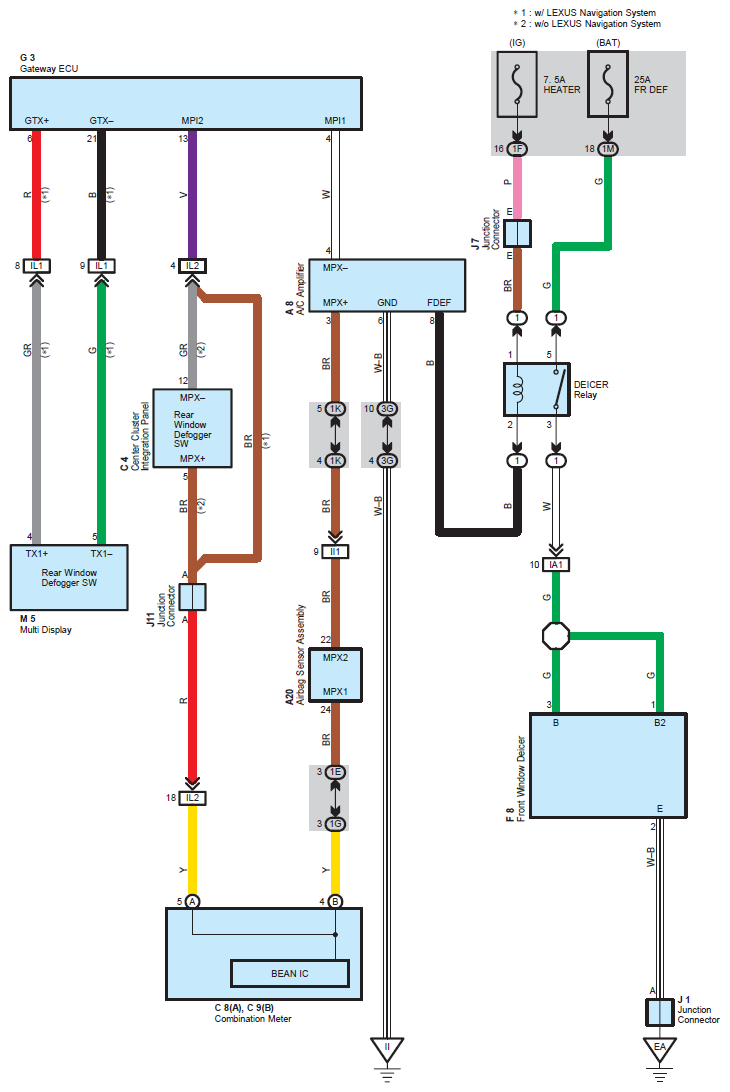

Fig 1: Front Window Deicer - Circuit Diagram
G07602924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
