Home >> Lexus >> 2008 >> RX 350 FWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Mirror Heater without Memory >> Notes

Mirror Heater without Memory: Notes

Fig 1: Mirror Heater Without Memory - Circuit Diagram (1 Of 2)
G07602934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

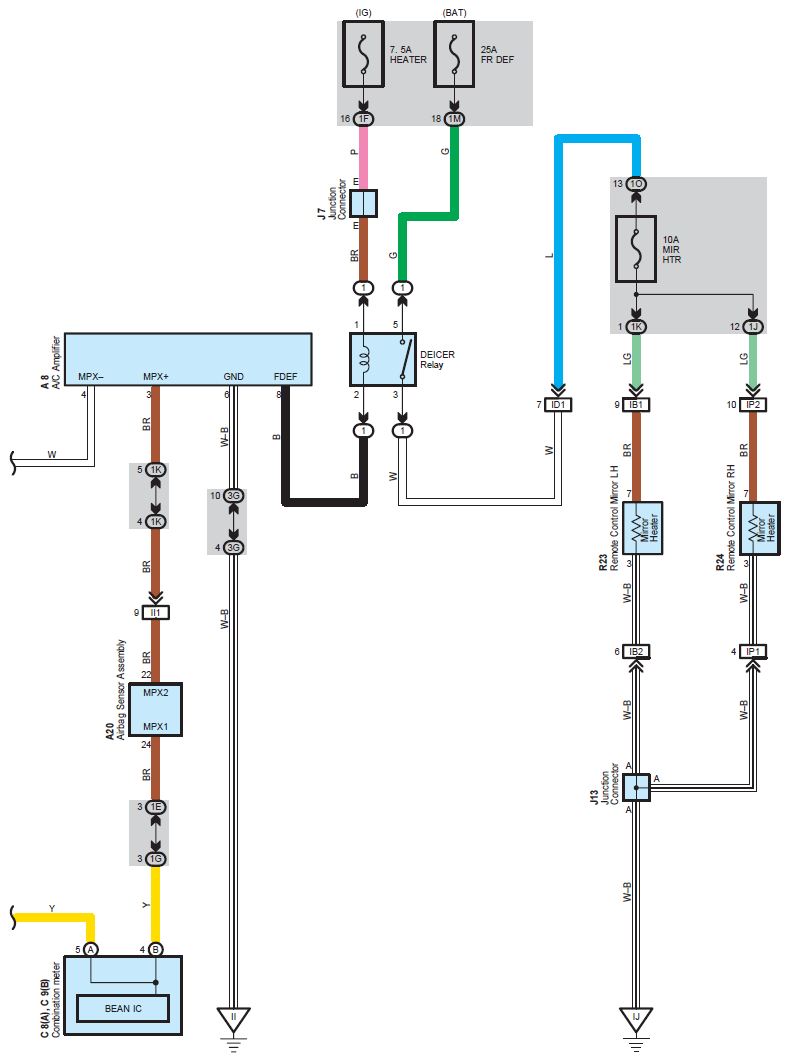

Fig 2: Mirror Heater Without Memory - Circuit Diagram (2 Of 2)
G07602935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
