Home >> Lexus >> 2008 >> RX 350 FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> U151E Automatic Transaxle >> Differential Case >> Components

Differential Case: Components

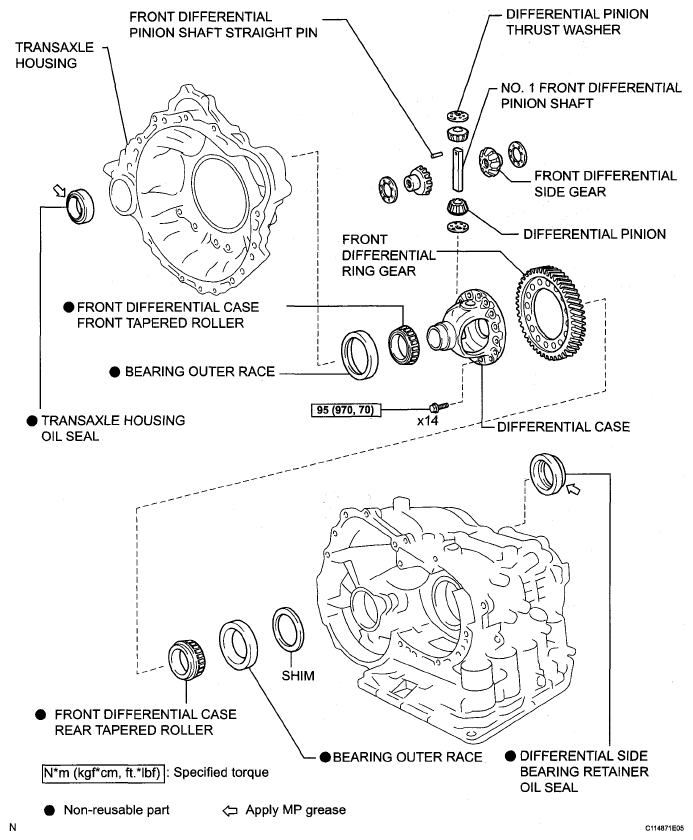

Fig 1: Differential Case Replacement Components With Torque Specifications
G05272364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
